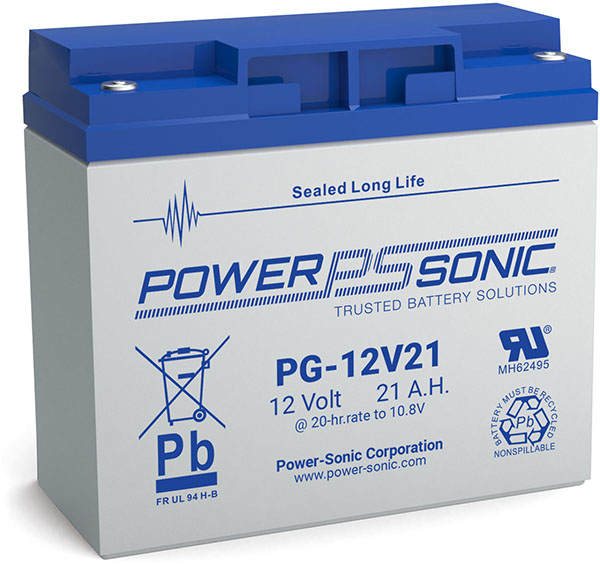

PowerSonic PG-12V21 Lead Acid Battery

PowerSonic PG Series PG-12V21 12 Volt / 18.9 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PG Series PG-12V21 12 Volt / 18.9 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PG-12V21R
Dimensions 7.12″ (L) x 3.03″ (W) x 6.59″ (H)
Dimensions (mm) 181 mm (L) x 77 mm (W) x 167.5 mm (H)
Weight 13.2 lbs (6 kgs)

Additional information

Manufacturer

PowerSonic

price-discounts

Pallet Layer (50 pieces), Pallet (150 pieces)

Product Line
Product Series

PG Series

Model

PG-12V21

Terminal

Recessed M5

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

PG-12V21

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

18.9 Ah @20 Hr

Capacity @20 Hr

18.9

Capacity @10 Hr

18

Capacity @1 Hr

11.0

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

12 Years

Service Life

Up to 12 Years

Shelf Life

6

Internal Resistance

15 mOhm

Maximum Current

200

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

7.12

Width (In)

3.03

Height - Case (In)

6.59

Height - Overall (In)

6.59

Length (mm)

181

Width (mm)

77

Height - Case (mm)

167.5

Height - Overall (mm)

167.5

Weight (lb)

13.2

Weight (kg)

6

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
