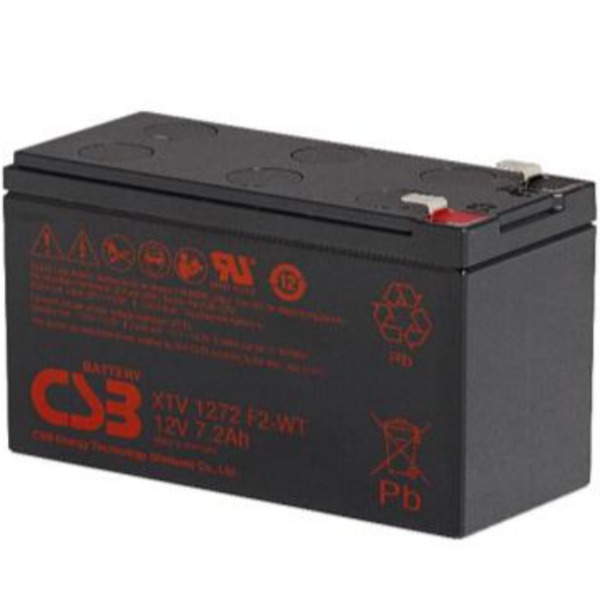

CSB XTV1272F2-WT SLA (AGM) Battery

As low as $23.70 each

CSB XTV1272F2-WT XTV Series 12 Volt / 7.2 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case

Loading...

Description

CSB XTV1272F2-WT XTV Series 12 Volt / 7.2 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case

Specifications
Battery Store SKU CS-XTV1272-WTF2
Dimensions 5.94″ (L) x 2.55″ (W) x 3.71″ (H)
Dimensions (mm) 151 mm (L) x 65 mm (W) x 94 mm (H)
Weight 5.7 lbs (2.57 kgs)

Additional information

Weight 5.7 lbs
Manufacturer

CSB

price-discounts

Each (1 pieces), Box/Case (10 pieces), Pallet Layer (90 pieces), Pallet (360 pieces)

Product Line
Product Series

XTV Series

Model

XTV1272-WT

Terminal

F2 (0.250")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

XTV1272F2-WT

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

7.2 Ah @20 Hr

Capacity @20 Hr

7.2

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

Gel

Design Life

12 Years

Service Life
Shelf Life

6

Internal Resistance

20.4 mOhm

Maximum Current

130 Amp

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.4 to 15.0 VDC

Maximum Charge Current

2.2 Amp

Operating Temp Low (°F)

-4

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-20

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

5.94

Width (In)

2.55

Height - Case (In)

3.71

Height - Overall (In)

3.88

Length (mm)

151

Width (mm)

65

Height - Case (mm)

94

Height - Overall (mm)

99

Weight (lb)

5.7

Weight (kg)

2.57

BCI Group

M7 Size

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
