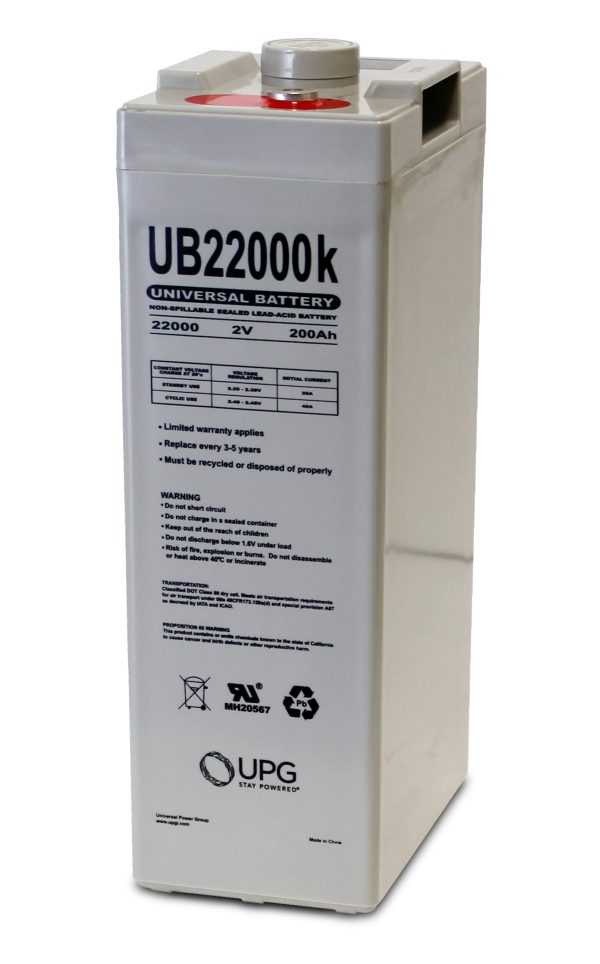

Universal Power UB22000 Lead Acid Battery

$194.76

Universal Power UB22000 UB Series 2 Volt / 200 Ah @20 Hr Lead Acid Battery with Recessed M10 Terminals

Out of stock

Loading...

Description

Universal Power UB22000 UB Series 2 Volt / 200 Ah @20 Hr Lead Acid Battery with Recessed M10 Terminals

Specifications
Battery Store SKU UB-22000R
Dimensions 6.73″ (L) x 4.73″ (W) x 14.37″ (H)
Dimensions (mm) 170.9 mm (L) x 120.1 mm (W) x 364.9 mm (H)
Weight 27.56 lbs (12.5 kgs)

Additional information

Weight 12.501133992561 lbs
Manufacturer

Universal Power

Product Line
Product Series

UB Series

Model

UB-22000

Terminal

Recessed M10

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

UB22000

Manufacturers SKU

45797

Deprecated Model #
Applications
Voltage

2

Capacity (Nominal)

200 Ah @20 Hr

Capacity @20 Hr

200

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3 to 5 Years

Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

350

Standby Charge Voltage

13.6 – 13.8 Volts

Cycle Charge Voltage

14.6 – 14.8 Volts

Maximum Charge Current

C/3

Operating Temp Low (°F)

32

Operating Temp High (°F)

104

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

0

Operating Temp High (°C)

40

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

6.73

Width (In)

4.73

Height - Case (In)

14.37

Height - Overall (In)

14.37

Length (mm)

170.9

Width (mm)

120.1

Height - Case (mm)

364.9

Height - Overall (mm)

364.9

Weight (lb)

27.56

Weight (kg)

12.5

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

1

Qty Per Pallet

96
