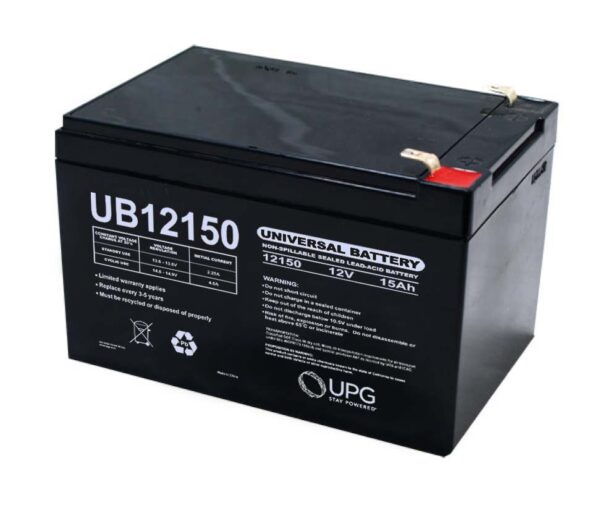

Universal Power UB12150 Lead Acid Battery

$64.42

Universal Power UB12150 UB Series 12 Volt / 15 Ah @20 Hr Lead Acid Battery with Tab (0.31”) Terminals

Out of stock

Loading...

Description

Universal Power UB12150 UB Series 12 Volt / 15 Ah @20 Hr Lead Acid Battery with Tab (0.31”) Terminals

Specifications
Battery Store SKU UB-12150F3
Dimensions 5.94″ (L) x 3.89″ (W) x 3.94″ (H)
Dimensions (mm) 151.1 mm (L) x 98.8 mm (W) x 100 mm (H)
Weight 8.5 lbs (3.9 kgs)

Additional information

Weight 3.8555747074299 lbs
Manufacturer

Universal Power

Product Line
Product Series

UB Series

Model

UB-12150

Terminal

Tab (0.31”)

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

UB12150

Manufacturers SKU

40658

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

15 Ah @20 Hr

Capacity @20 Hr

15

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3 to 5 Years

Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

350

Standby Charge Voltage

13.6 – 13.8 Volts

Cycle Charge Voltage

14.6 – 14.8 Volts

Maximum Charge Current

C/3

Operating Temp Low (°F)

32

Operating Temp High (°F)

104

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

0

Operating Temp High (°C)

40

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

5.94

Width (In)

3.89

Height - Case (In)

3.94

Height - Overall (In)

3.94

Length (mm)

151.1

Width (mm)

98.8

Height - Case (mm)

100

Height - Overall (mm)

100

Weight (lb)

8.5

Weight (kg)

3.9

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

4

Qty Per Pallet

336
