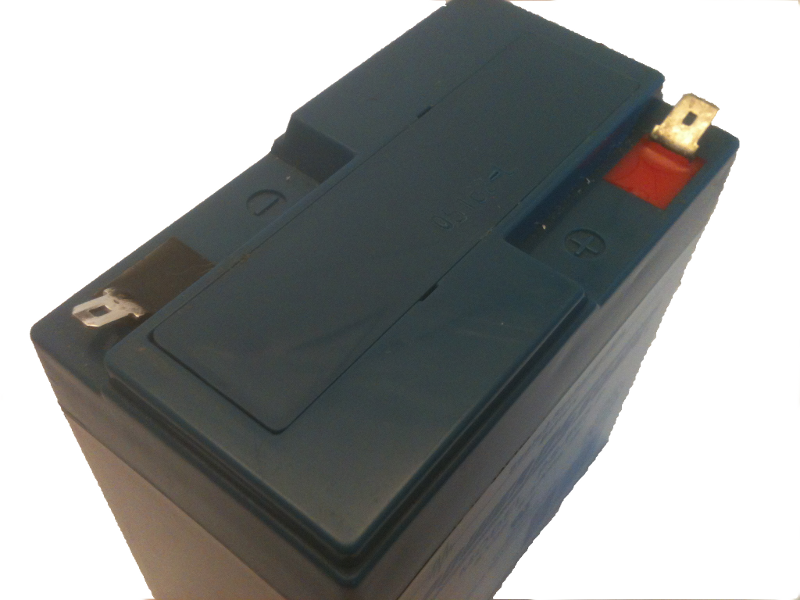

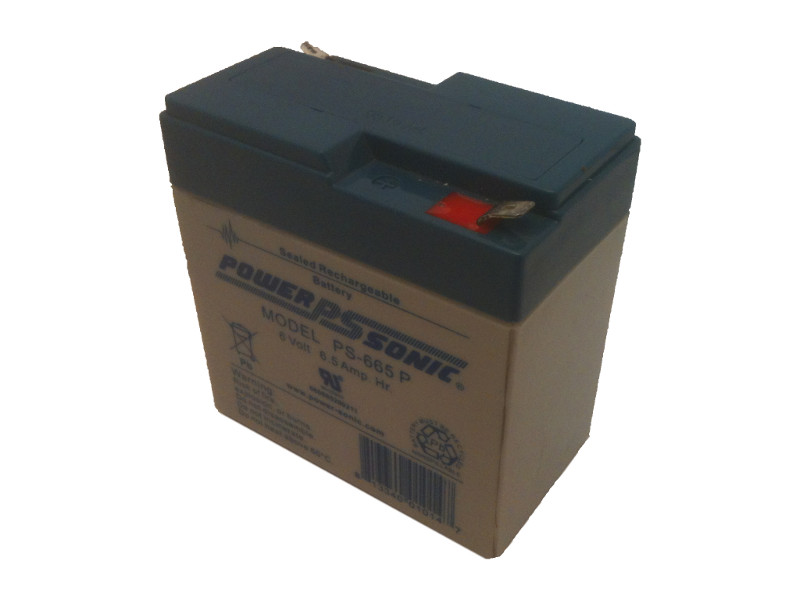

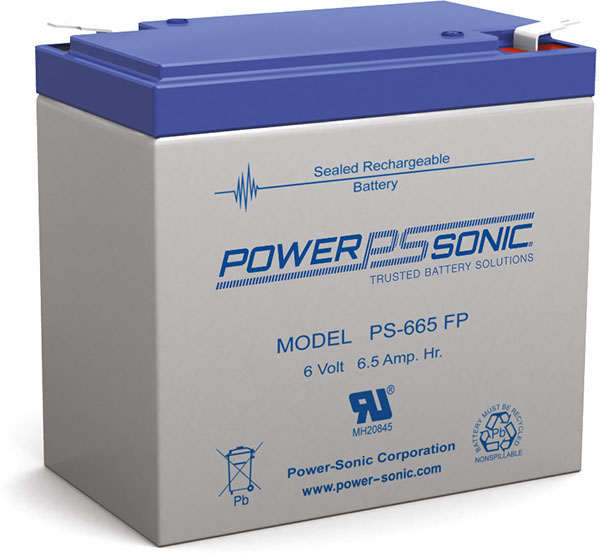

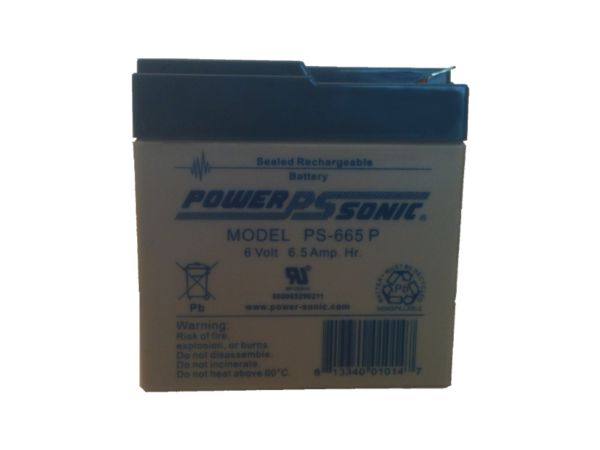

PowerSonic PS-665 Lead Acid Battery

PowerSonic PS Series PS-665 6 Volt / 6.5 Ah @20 Hr Lead Acid Battery with Polarized F1/F2 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-665 6 Volt / 6.5 Ah @20 Hr Lead Acid Battery with Polarized F1/F2 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-665FP
Dimensions 3.86″ (L) x 2.20″ (W) x 3.78″ (H)
Dimensions (mm) 98 mm (L) x 56 mm (W) x 96 mm (H)
Weight 2.684 lbs (1.22 kgs)

Additional information

Weight 2.684 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 Pieces), Box/Case (10 Pieces), Pallet Layer (180 Pieces), Pallet (720 Pieces)

Product Line
Product Series

PS Series

Model

PS-665

Terminal

Polarized F1/F2

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010147

Manufacturers Model #

PS-665

Manufacturers SKU
Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

6.5 Ah @20 Hr

Capacity @20 Hr

6.5

Capacity @10 Hr

6.1

Capacity @1 Hr

4.03

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

12.0 mOhm

Maximum Current

65

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

3.86

Width (In)

2.20

Height - Case (In)

3.78

Height - Overall (In)

3.78

Length (mm)

98

Width (mm)

56

Height - Case (mm)

96

Height - Overall (mm)

96

Weight (lb)

2.684

Weight (kg)

1.22

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
