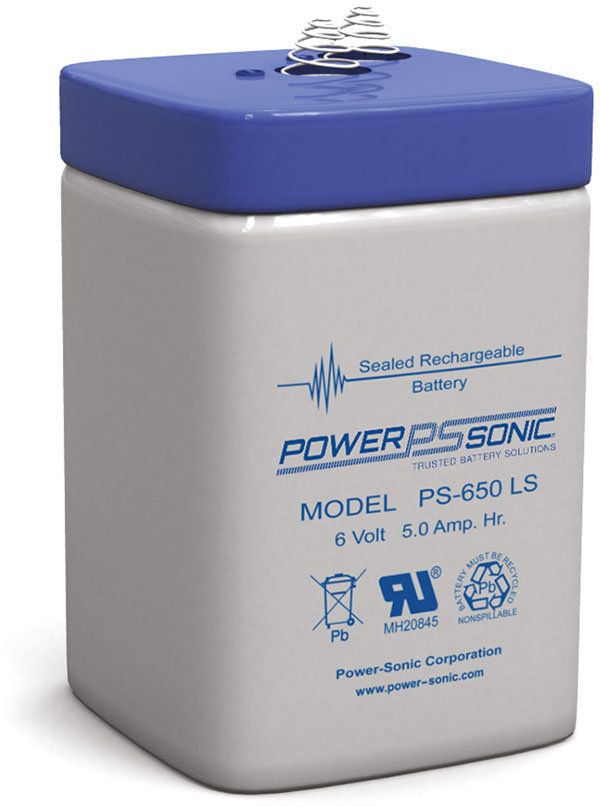

PowerSonic PS-650LS Lead Acid Battery

As low as $7.14 each

PowerSonic PS Series PS-650LS 6 Volt / 5.0 Ah @20 Hr Lead Acid Battery with Pressure Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-650LS 6 Volt / 5.0 Ah @20 Hr Lead Acid Battery with Pressure Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-650LSPC
Dimensions 2.64″ (L) x 2.64″ (W) x 3.94″ (H)
Dimensions (mm) 67 mm (L) x 67 mm (W) x 100 mm (H)
Weight 1.804 lbs (0.82 kgs)

Additional information

Weight 1.804 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 Pieces), Box/Case (20 Pieces), Pallet Layer (180 Pieces), Pallet (720 Pieces)

Product Line
Product Series

PS Series

Model

PS-650LS

Terminal

Pressure

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010123

Manufacturers Model #

PS-650LS

Manufacturers SKU
Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

5.0 Ah @20 Hr

Capacity @20 Hr

5

Capacity @10 Hr

4.73

Capacity @1 Hr

3.63

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

60 mOhm

Maximum Current

75

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

2.64

Width (In)

2.64

Height - Case (In)

3.94

Height - Overall (In)

3.94

Length (mm)

67

Width (mm)

67

Height - Case (mm)

100

Height - Overall (mm)

100

Weight (lb)

1.804

Weight (kg)

0.82

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
