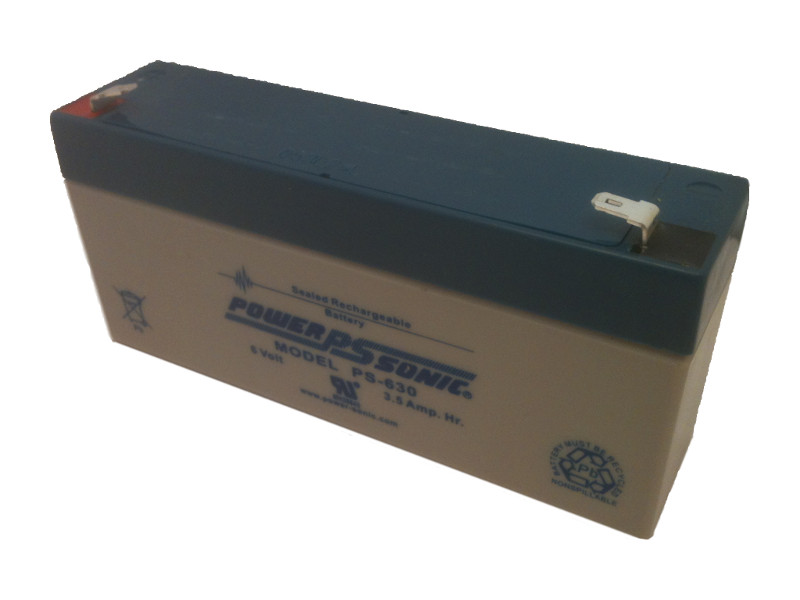

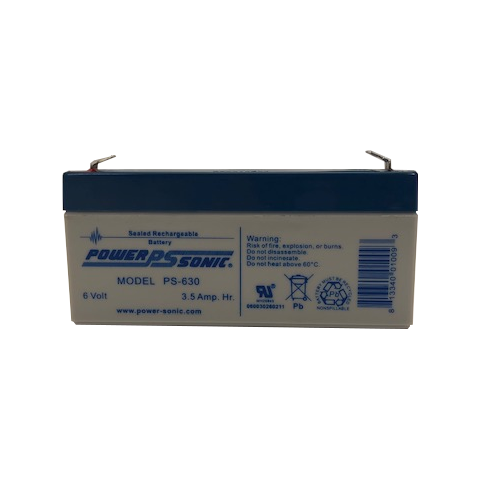

PowerSonic PS-630 Lead Acid Battery
As low as $5.52 each
PowerSonic PS Series PS-630 6 Volt / 3.5 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
Loading...
Description
PowerSonic PS Series PS-630 6 Volt / 3.5 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-630F1 |
| Dimensions | ” (L) x ” (W) x ” (H) |
| Dimensions (mm) | mm (L) x mm (W) x mm (H) |
| Weight | lbs ( kgs) |
Additional information
| Weight | 1.408 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces), Box/Case (20 pieces), Pallet Layer (320 pieces), Pallet (1,280 pieces) |
| Product Series | PS Series |
| Model | PS-630 |
| Terminal | F1 (0.187") |
| Case Material | ABS Plastic |
| UPC Code | 813340010093 |
| Manufacturers Model # | PS-630 |
| Voltage | 6 |
| Capacity (Nominal) | 3.5 Ah @20 Hr |
| Capacity @20 Hr | 3.5 |
| Capacity @10 Hr | 3.3 |
| Capacity @1 Hr | 2.17 |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 5 Years |
| Shelf Life | 6 |
| Internal Resistance | 28 mOhm |
| Maximum Current | 35 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 5.28 |
| Width (In) | 1.34 |
| Height - Case (In) | 2.36 |
| Height - Overall (In) | 2.36 |
| Length (mm) | 134 |
| Width (mm) | 34 |
| Height - Case (mm) | 60 |
| Height - Overall (mm) | 60 |
| Weight (lb) | 1.408 |
| Weight (kg) | 0.64 |
