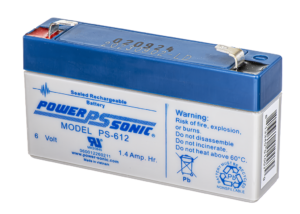

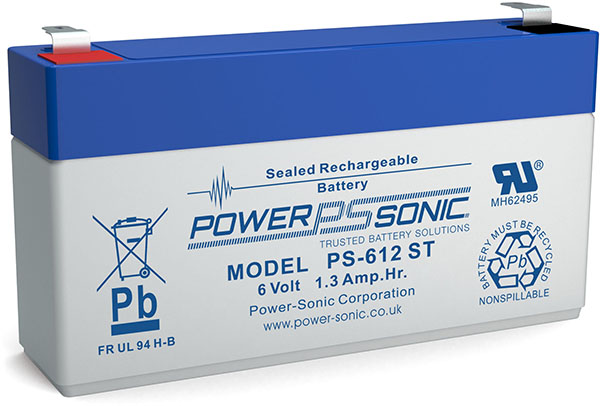

PowerSonic PS-612ST Lead Acid Battery
PowerSonic PS Series PS-612ST 6 Volt / 1.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
Out of stock
Loading...
Description
PowerSonic PS Series PS-612ST 6 Volt / 1.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-612STF1 |
| Dimensions | 3.82″ (L) x 0.94″ (W) x 2.01″ (H) |
| Dimensions (mm) | 97 mm (L) x 24 mm (W) x 51 mm (H) |
| Weight | 0.594 lbs (0.27 kgs) |
Product Notes
Terminals are parallel instead of facing each other.
Additional information
| Weight | 0.594 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces) |
| Product Series | PS Series |
| Model | PS-612ST |
| Terminal | F1 (0.187") |
| Case Material | ABS Plastic |
| Manufacturers Model # | PS-612ST |
| Voltage | 6 |
| Capacity (Nominal) | 1.2 Ah @20 Hr |
| Capacity @20 Hr | 1.2 |
| Capacity @10 Hr | 1.12 |
| Capacity @1 Hr | 0.73 |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 5 Years |
| Shelf Life | 6 |
| Internal Resistance | 65 mOhm |
| Maximum Current | 12 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 3.82 |
| Width (In) | 0.94 |
| Height - Case (In) | 2.01 |
| Height - Overall (In) | 2.01 |
| Length (mm) | 97 |
| Width (mm) | 24 |
| Height - Case (mm) | 51 |
| Height - Overall (mm) | 51 |
| Weight (lb) | 0.594 |
| Weight (kg) | 0.27 |
