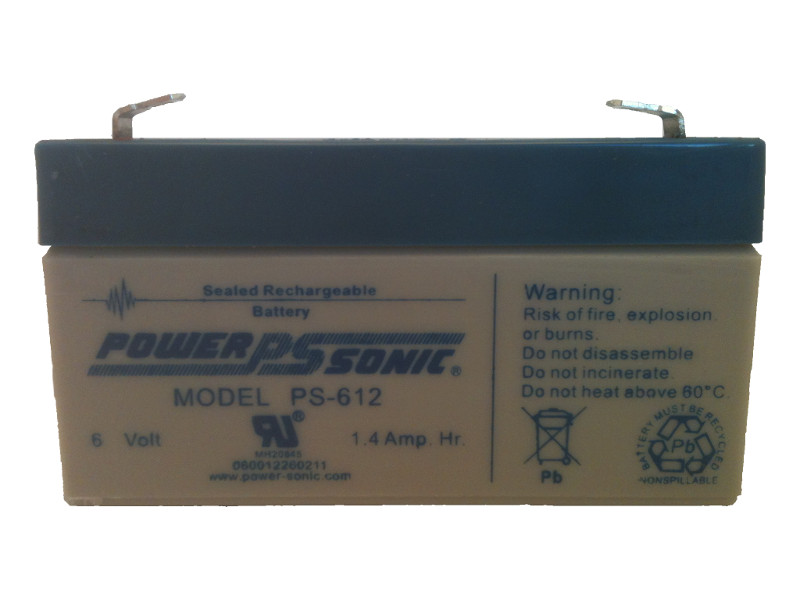

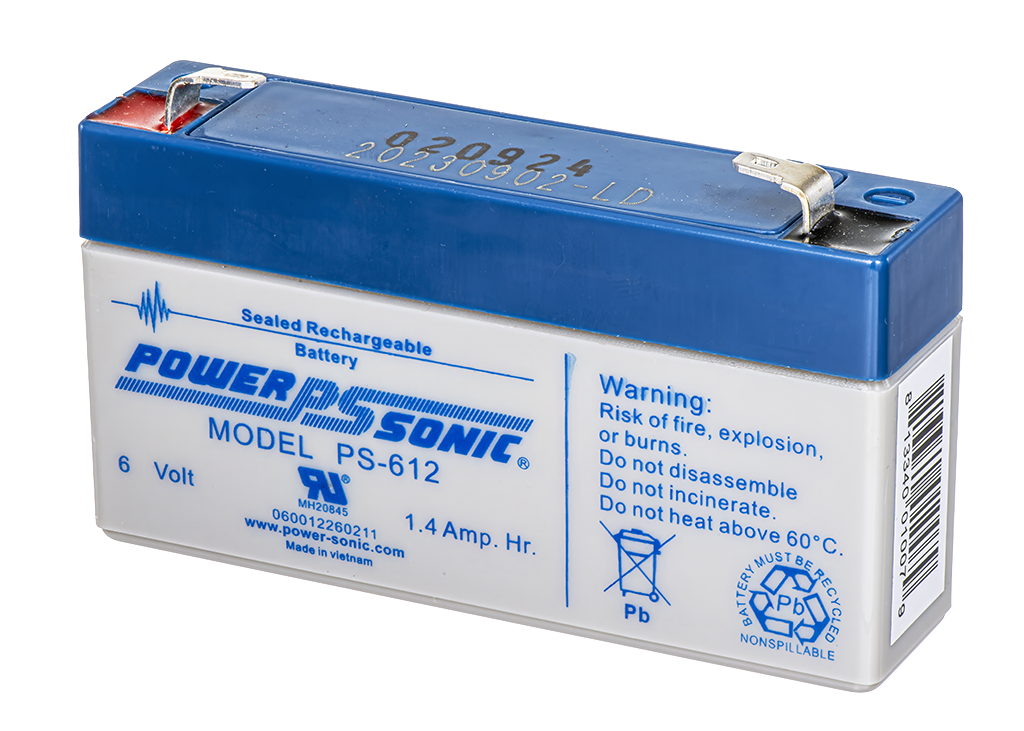

PowerSonic PS-612 Lead Acid Battery

As low as $4.50 each

PowerSonic PS Series PS-612 6 Volt / 1.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-612 6 Volt / 1.2 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-612F1
Dimensions 3.82″ (L) x 0.94″ (W) x 2.01″ (H)
Dimensions (mm) 97 mm (L) x 24 mm (W) x 51 mm (H)
Weight 0.594 lbs (0.27 kgs)

Additional information

Weight 0.66 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (20 pieces), Pallet Layer (480 pieces), Pallet (2,400 pieces)

Product Line
Product Series

PS Series

Model

PS-612

Terminal

F1 (0.187")

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010079

Manufacturers Model #

PS-612

Manufacturers SKU
Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

1.2 Ah @20 Hr

Capacity @20 Hr

1.2

Capacity @10 Hr

1.12

Capacity @1 Hr

0.73

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

65 mOhm

Maximum Current

12

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

3.82

Width (In)

0.94

Height - Case (In)

2.01

Height - Overall (In)

2.01

Length (mm)

97

Width (mm)

24

Height - Case (mm)

51

Height - Overall (mm)

51

Weight (lb)

0.594

Weight (kg)

0.27

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
