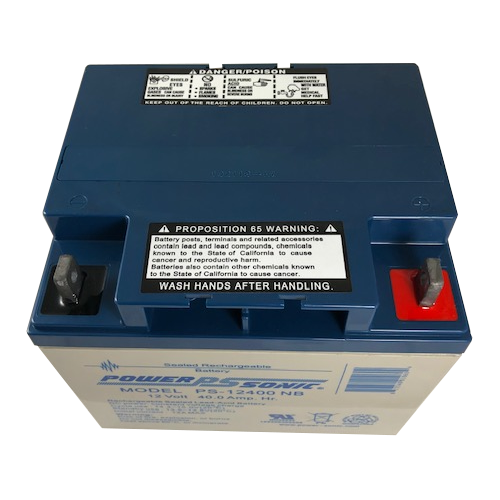

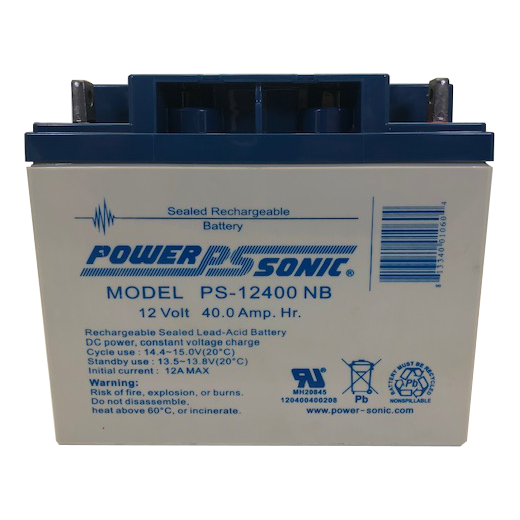

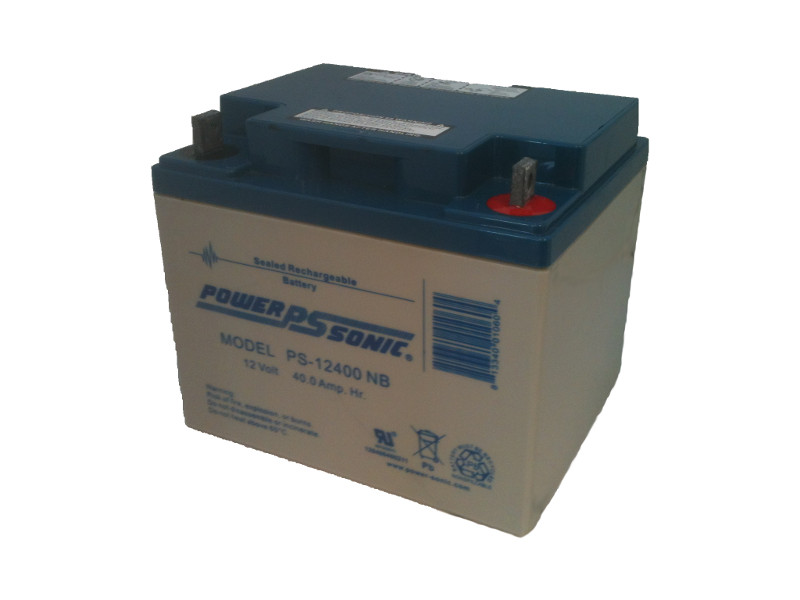

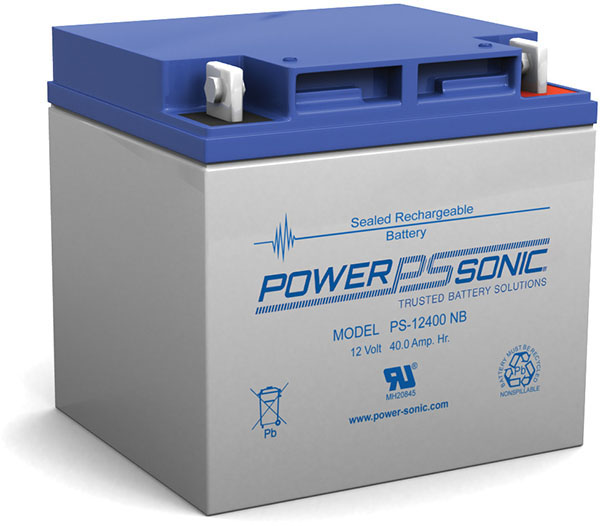

PowerSonic PS-12400 NB Lead Acid Battery

As low as $75.00 each

PowerSonic PS Series PS-12400 NB 12 Volt / 40 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M7) Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-12400 NB 12 Volt / 40 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M7) Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-12400NB
Dimensions 7.76″ (L) x 6.50″ (W) x 6.69″ (H)
Dimensions (mm) 197 mm (L) x 165 mm (W) x 170 mm (H)
Weight 29.04 lbs (13.2 kgs)

Additional information

Weight 29.04 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 Pieces), Box/Case (1 Pieces), Pallet Layer (30 Pieces), Pallet (60 Pieces)

Product Line
Product Series

PS Series

Model

PS-12400

Terminal

Nut & Bolt (M7)

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010604

Manufacturers Model #

PS-12400 NB

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

40 Ah @20 Hr

Capacity @20 Hr

40.

Capacity @10 Hr

38.0

Capacity @1 Hr

24.0

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

10 mOhm

Maximum Current

380

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

7.76

Width (In)

6.50

Height - Case (In)

6.69

Height - Overall (In)

6.69

Length (mm)

197

Width (mm)

165

Height - Case (mm)

170

Height - Overall (mm)

170

Weight (lb)

29.04

Weight (kg)

13.2

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
