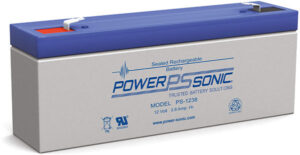

PowerSonic PS-1238 Lead Acid Battery

As low as $11.40 each

PowerSonic PS Series PS-1238 12 Volt / 3.8 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-1238 12 Volt / 3.8 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-1238F1
Dimensions 7.68″ (L) x 1.85″ (W) x 2.91″ (H)
Dimensions (mm) 195 mm (L) x 47 mm (W) x 74 mm (H)
Weight 3.498 lbs (1.59 kgs)

Additional information

Weight 3.498 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 Pieces), Box/Case (10 Pieces), Pallet Layer (120 Pieces), Pallet (480 Pieces)

Product Line
Product Series

PS Series

Model

PS-1238

Terminal

F1 (0.187")

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010390

Manufacturers Model #

PS-1238

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

3.8 Ah @20 Hr

Capacity @20 Hr

3.8

Capacity @10 Hr

3.5

Capacity @1 Hr

2.4

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

45 mOhm

Maximum Current

38.0

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

7.68

Width (In)

1.85

Height - Case (In)

2.91

Height - Overall (In)

2.99

Length (mm)

195

Width (mm)

47

Height - Case (mm)

74

Height - Overall (mm)

76

Weight (lb)

3.498

Weight (kg)

1.59

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
