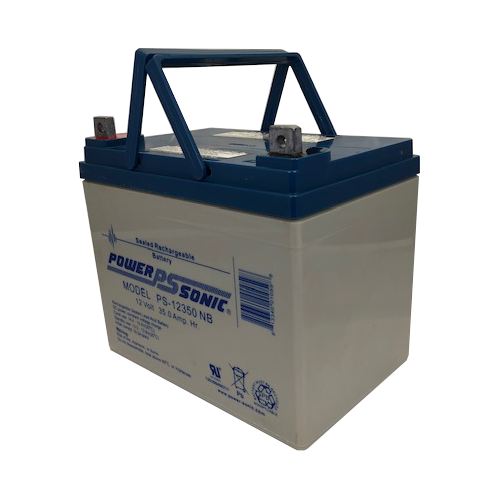

PowerSonic PS-12350NB Lead Acid Battery

As low as $59.69 each

PowerSonic PS Series PS-12350NB 12 Volt / 35 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M6) Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-12350NB 12 Volt / 35 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M6) Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-12350NB
Dimensions 7.72″ (L) x 5.16″ (W) x 6.22″ (H)
Dimensions (mm) 196 mm (L) x 131 mm (W) x 158 mm (H)
Weight 23.342 lbs (10.61 kgs)

Additional information

Weight 23.342 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 Pieces), Box/Case (1 Pieces), Pallet Layer (27 Pieces), Pallet (84 Pieces)

Product Line
Product Series

PS Series

Model

PS-12350

Terminal

Nut & Bolt (M6)

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010598

Manufacturers Model #

PS-12350NB

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

35 Ah @20 Hr

Capacity @20 Hr

35.

Capacity @10 Hr

33.0

Capacity @1 Hr

20.7

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

12 mOhm

Maximum Current

495

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

7.72

Width (In)

5.16

Height - Case (In)

6.22

Height - Overall (In)

7.01

Length (mm)

196

Width (mm)

131

Height - Case (mm)

158

Height - Overall (mm)

178

Weight (lb)

23.342

Weight (kg)

10.61

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
