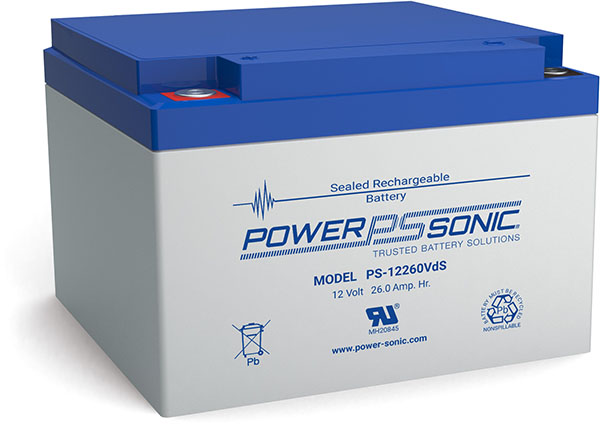

PowerSonic PS-12260VdS Lead Acid Battery

PowerSonic PS Series PS-12260VdS 12 Volt / 26 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals / ABS Plastic Case

Out of stock

Loading...

Description

PowerSonic PS Series PS-12260VdS 12 Volt / 26 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-12260VdSR
Dimensions 6.57″ (L) x 6.97″ (W) x 4.92″ (H)
Dimensions (mm) 167 mm (L) x 177 mm (W) x 125 mm (H)
Weight 16.962 lbs (7.71 kgs)

Additional information

Weight 7.6939127279325 lbs
Manufacturer

PowerSonic

Product Line
Product Series

PS Series

Model

PS-12260VdS

Terminal

Recessed M5

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

PS-12260VdS

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

26 Ah @20 Hr

Capacity @20 Hr

26.0

Capacity @10 Hr

24.2

Capacity @1 Hr

16.3

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

10 Years

Service Life
Shelf Life

6

Internal Resistance

14 mOhm

Maximum Current

260

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

6.57

Width (In)

6.97

Height - Case (In)

4.92

Height - Overall (In)

4.92

Length (mm)

167

Width (mm)

177

Height - Case (mm)

125

Height - Overall (mm)

125

Weight (lb)

16.962

Weight (kg)

7.71

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
