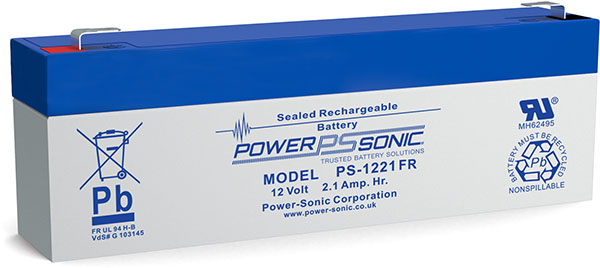

PowerSonic PS-1221VdS FR Lead Acid Battery

PowerSonic PS Series PS-1221VdS FR 12 Volt / 2.1 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / Flame Retardant UL94-V0 Case

Loading...

Description

PowerSonic PS Series PS-1221VdS FR 12 Volt / 2.1 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / Flame Retardant UL94-V0 Case

Specifications
Battery Store SKU PS-1221VdSF1FR
Dimensions 7.01″ (L) x 1.38″ (W) x 2.36″ (H)
Dimensions (mm) 178 mm (L) x 35 mm (W) x 60 mm (H)
Weight 2.09 lbs (0.95 kgs)

Additional information

Weight 2.09 lbs
Manufacturer

PowerSonic

price-discounts
Product Line
Product Series

PS Series

Model

PS-1221VdS

Terminal

F1 (0.187")

Terminal Layout
Case Material

Flame Retardant UL94-V0

UPC Code
Manufacturers Model #

PS-1221VdS FR

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

2.1 Ah @20 Hr

Capacity @20 Hr

2.1

Capacity @10 Hr

1.90

Capacity @1 Hr

1.22

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

90 mOhm

Maximum Current

27.3

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

7.01

Width (In)

1.38

Height - Case (In)

2.36

Height - Overall (In)

2.56

Length (mm)

178

Width (mm)

35

Height - Case (mm)

60

Height - Overall (mm)

65

Weight (lb)

2.09

Weight (kg)

0.95

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
