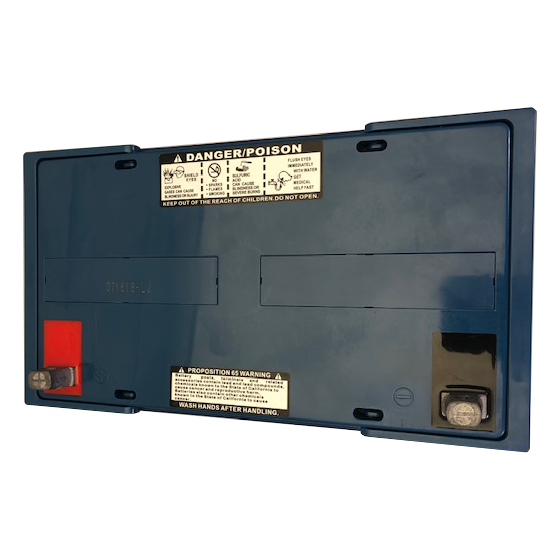

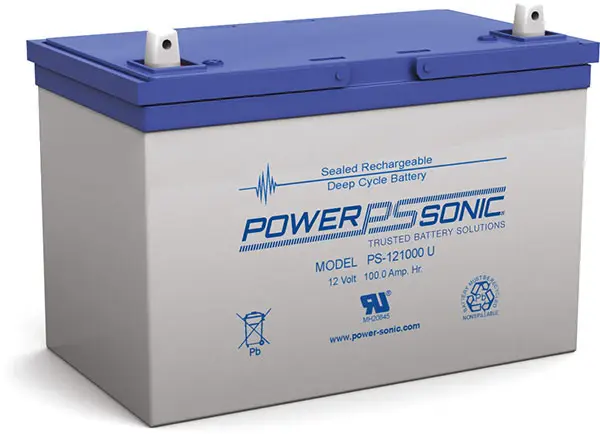

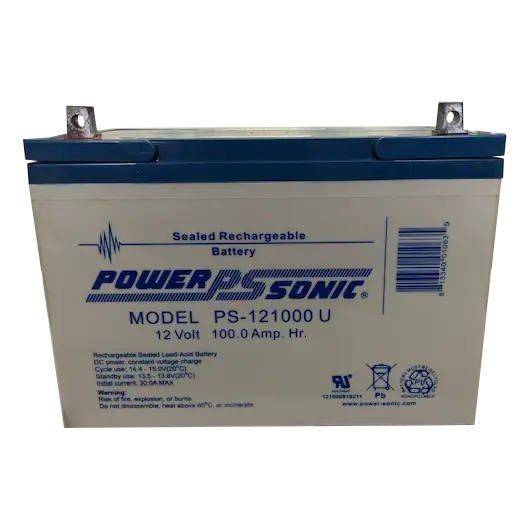

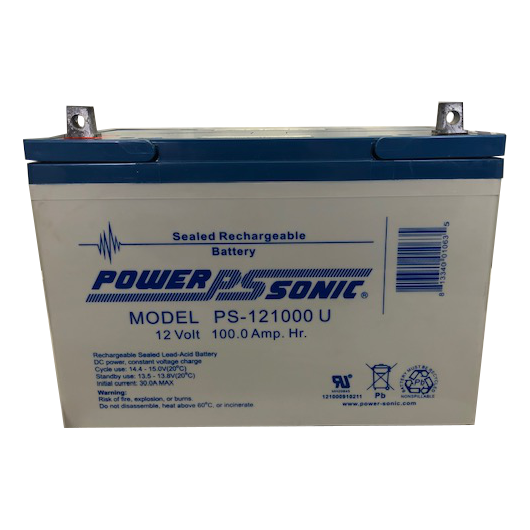

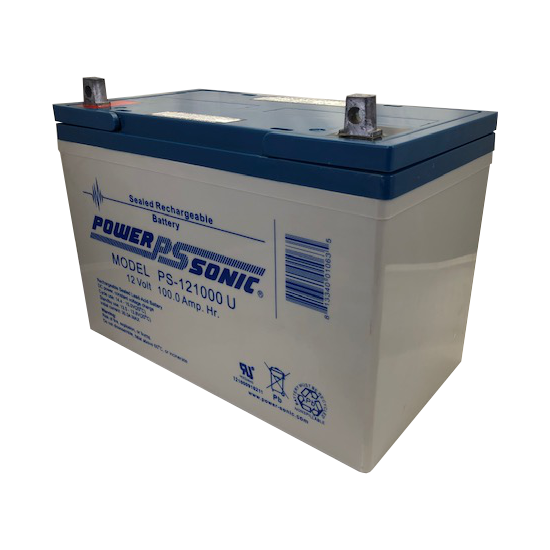

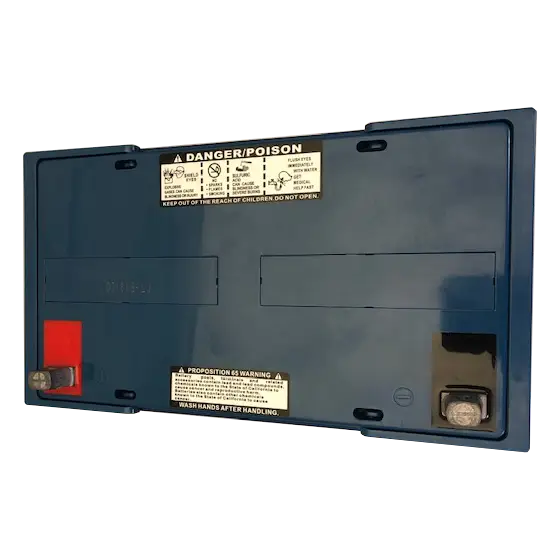

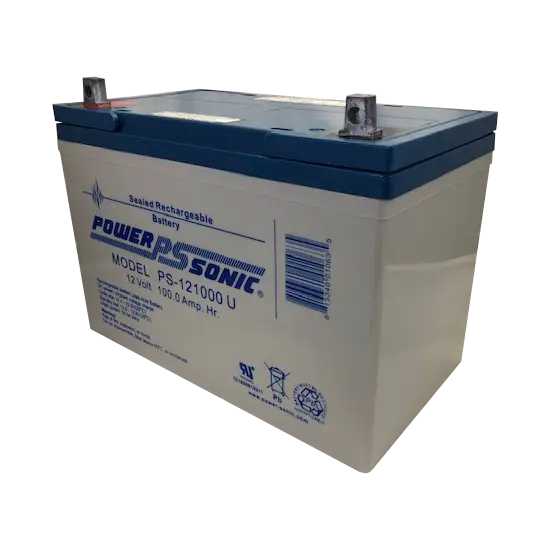

PowerSonic PS-121000U Lead Acid Battery

As low as $161.84 each

PowerSonic PS Series PS-121000U 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-121000U 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-121000UT
Dimensions 12.01″ (L) x 6.61″ (W) x 8.15″ (H)
Dimensions (mm) 305 mm (L) x 168 mm (W) x 207 mm (H)
Weight 67.848 lbs (30.84 kgs)

Product Notes

DISCONTINUED

Additional information

Weight 67.848 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (1 pieces), Pallet Layer (12 pieces), Pallet (24 pieces)

Product Line
Product Series

PS Series

Model

PS-121000

Terminal

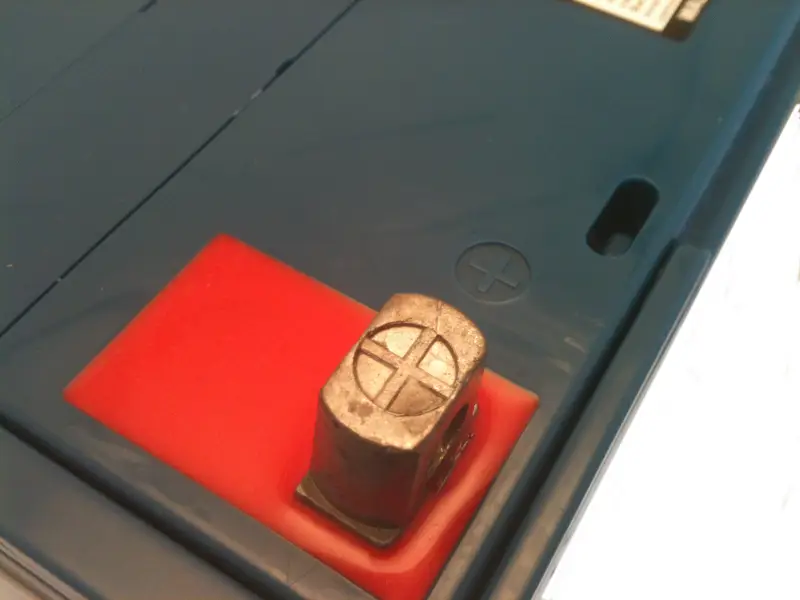

Nut & Bolt (Universal)

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010635

Manufacturers Model #

PS-121000U

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

100 Ah @20 Hr

Capacity @20 Hr

100.

Capacity @10 Hr

95.2

Capacity @1 Hr

57.9

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

10 Years

Service Life
Shelf Life

6

Internal Resistance

4.9 mOhm

Maximum Current

1200

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

12.01

Width (In)

6.61

Height - Case (In)

8.15

Height - Overall (In)

8.98

Length (mm)

305

Width (mm)

168

Height - Case (mm)

207

Height - Overall (mm)

228

Weight (lb)

67.848

Weight (kg)

30.84

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
