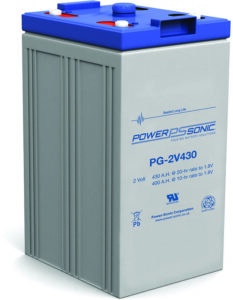

PowerSonic PG-2V430 Lead Acid Battery
PowerSonic PG 2V Series PG-2V430 2 Volt / 400 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case
Loading...
Description
PowerSonic PG 2V Series PG-2V430 2 Volt / 400 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PG-2V430R |
| Dimensions | 8.27″ (L) x 6.89″ (W) x 12.99″ (H) |
| Dimensions (mm) | 210 mm (L) x 175 mm (W) x 330 mm (H) |
| Weight | 56.21 lbs (25.55 kgs) |
Additional information
| Weight | 56.21 lbs |
|---|---|
| Manufacturer | PowerSonic |
| Product Series | PG 2V Series |
| Model | PG-2V430 |
| Terminal | Recessed M8 |
| Case Material | ABS Plastic |
| Manufacturers Model # | PG-2V430 |
| Voltage | 2 |
| Capacity (Nominal) | 400 Ah @10 Hr |
| Capacity @20 Hr | 426 |
| Capacity @10 Hr | 400 |
| Capacity @1 Hr | 240.3 |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Service Life | Up to 18 Years |
| Shelf Life | 6 |
| Internal Resistance | 0.7 mOhm |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 8.27 |
| Width (In) | 6.89 |
| Height - Case (In) | 12.99 |
| Height - Overall (In) | 12.99 |
| Length (mm) | 210 |
| Width (mm) | 175 |
| Height - Case (mm) | 330 |
| Height - Overall (mm) | 330 |
| Weight (lb) | 56.21 |
| Weight (kg) | 25.55 |
