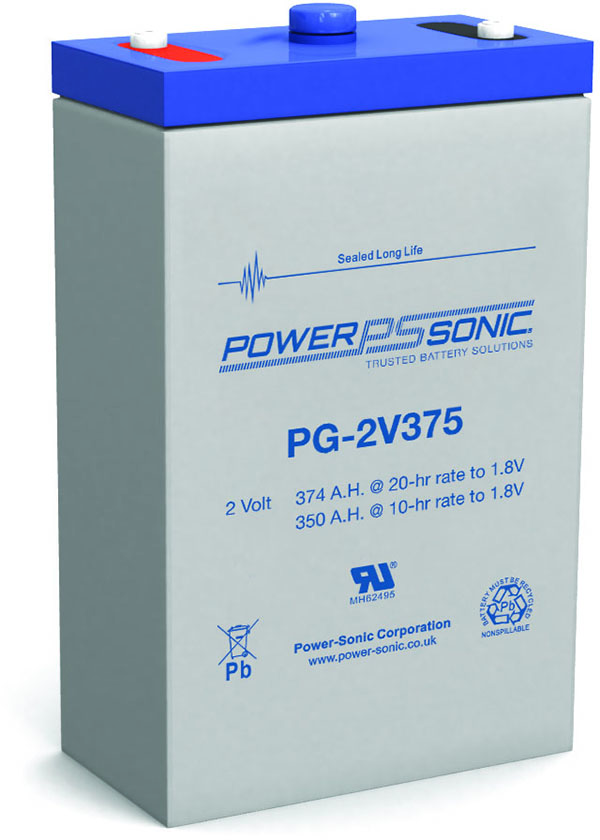

PowerSonic PG-2V375 Lead Acid Battery

PowerSonic PG 2V Series PG-2V375 2 Volt / 350 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Out of stock

Loading...

Description

PowerSonic PG 2V Series PG-2V375 2 Volt / 350 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PG-2V375R
Dimensions 6.69″ (L) x 5.91″ (W) x 12.91″ (H)
Dimensions (mm) 170 mm (L) x 150 mm (W) x 328 mm (H)
Weight 48.51 lbs (22.05 kgs)

Additional information

Weight 22.003991653815 lbs
Manufacturer

PowerSonic

Product Line
Product Series

PG 2V Series

Model

PG-2V375

Terminal

Recessed M8

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

PG-2V375

Manufacturers SKU
Deprecated Model #
Applications
Voltage

2

Capacity (Nominal)

350 Ah @10 Hr

Capacity @20 Hr

374

Capacity @10 Hr

350

Capacity @1 Hr

217

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life
Service Life

Up to 18 Years

Shelf Life

6

Internal Resistance

0.8 mOhm

Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

6.69

Width (In)

5.91

Height - Case (In)

12.91

Height - Overall (In)

12.91

Length (mm)

170

Width (mm)

150

Height - Case (mm)

328

Height - Overall (mm)

328

Weight (lb)

48.51

Weight (kg)

22.05

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
