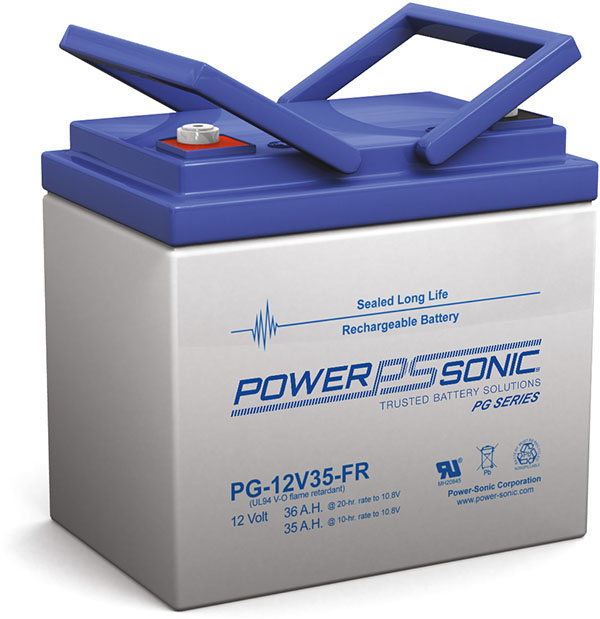

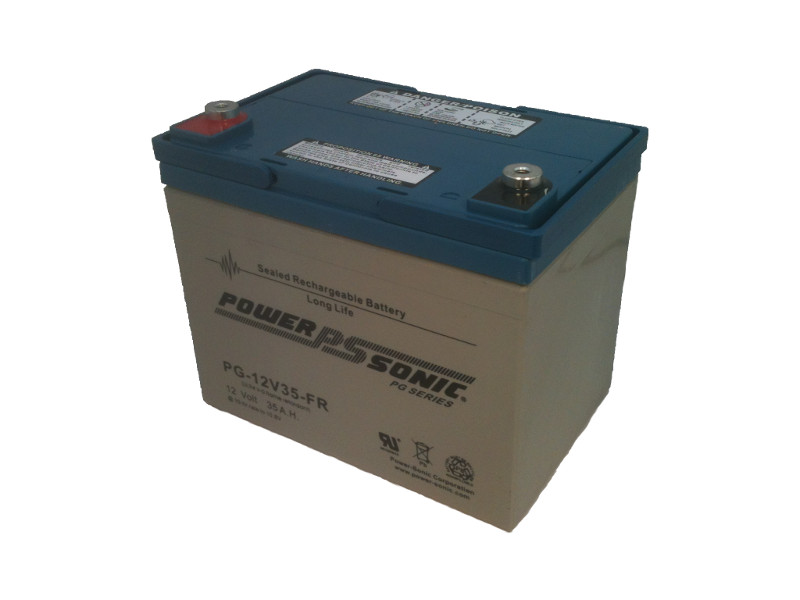

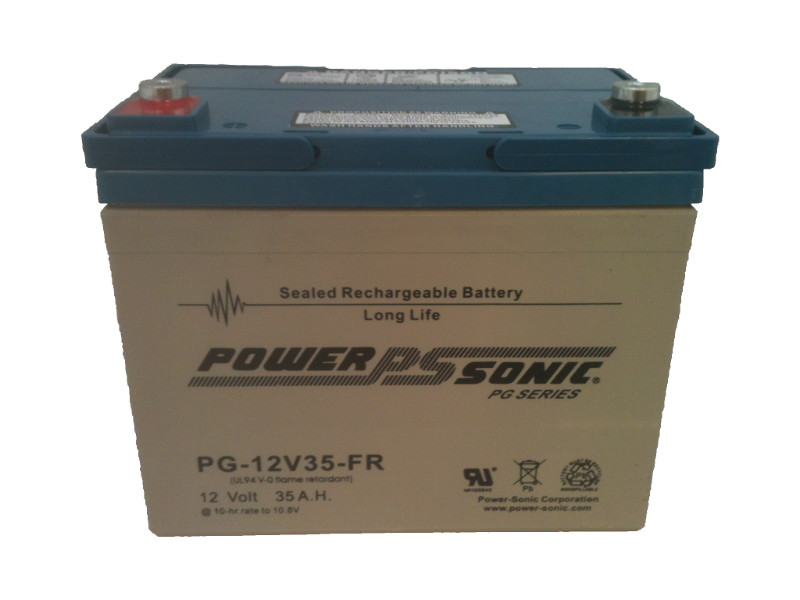

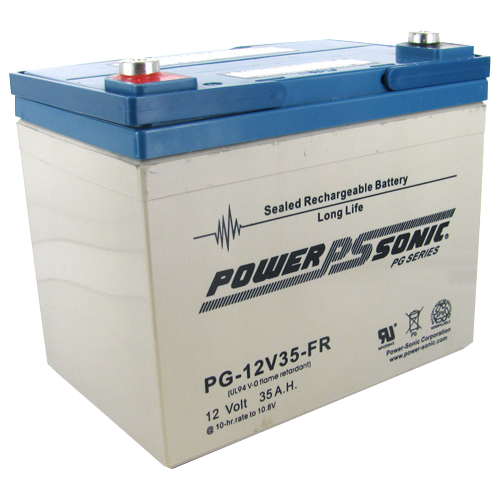

PowerSonic PG-12V35FR Lead Acid Battery
$150.62
PowerSonic PG Series PG-12V35FR 12 Volt / 36 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / Flame Retardant UL94-V0 Case
Out of stock
Loading...
Description
PowerSonic PG Series PG-12V35FR 12 Volt / 36 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PG-12V35RFR |
| Dimensions | 7.72″ (L) x 5.12″ (W) x 6.22″ (H) |
| Dimensions (mm) | 196 mm (L) x 130 mm (W) x 158 mm (H) |
| Weight | 24.442 lbs (11.11 kgs) |
Additional information
| Weight | 24.442 lbs |
|---|---|
| Manufacturer | PowerSonic |
| Product Series | PG Series |
| Model | PG-12V35 |

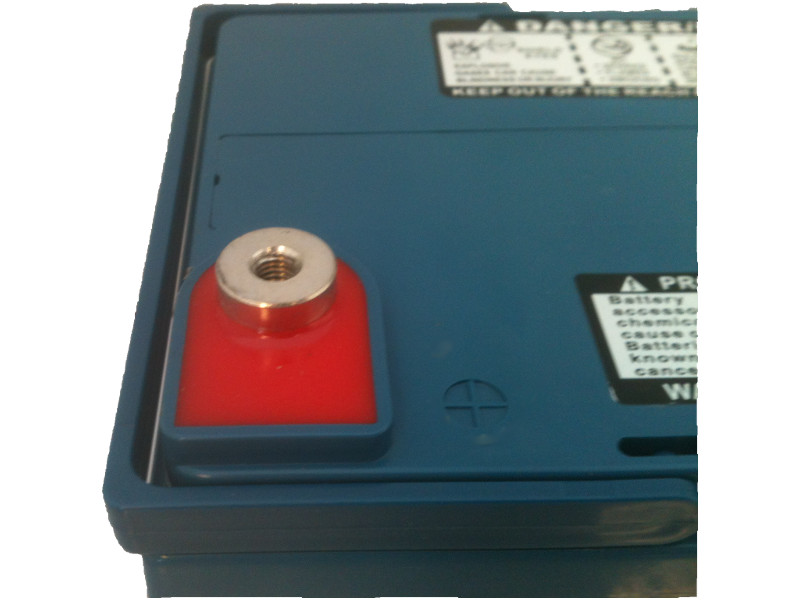

| Terminal | Recessed M6 |
| Case Material | Flame Retardant UL94-V0 |
| Manufacturers Model # | PG-12V35FR |
| Manufacturers SKU | 1203508418 |
| Voltage | 12 |
| Capacity (Nominal) | 36 Ah @20 Hr |
| Capacity @20 Hr | 36 |
| Capacity @10 Hr | 35 |
| Capacity @1 Hr | 27.0 |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 12 Years |
| Service Life | Up to 12 Years |
| Shelf Life | 6 |
| Internal Resistance | 8.0 mOhm |
| Maximum Current | 175 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 7.72 |
| Width (In) | 5.12 |
| Height - Case (In) | 6.22 |
| Height - Overall (In) | 6.22 |
| Length (mm) | 196 |
| Width (mm) | 130 |
| Height - Case (mm) | 158 |
| Height - Overall (mm) | 158 |
| Weight (lb) | 24.442 |
| Weight (kg) | 11.11 |
