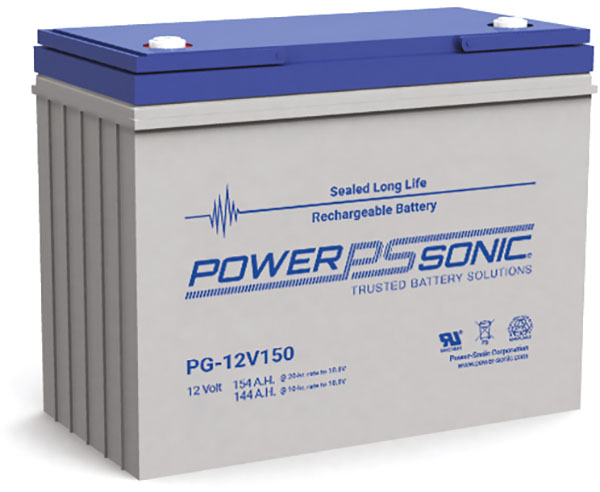

PowerSonic PG-12V150 Lead Acid Battery

PowerSonic PG Series PG-12V150 12 Volt / 154 Ah @20 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PG Series PG-12V150 12 Volt / 154 Ah @20 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PG-12V150R
Dimensions 13.50″ (L) x 6.73″ (W) x 10.79″ (H)
Dimensions (mm) 343 mm (L) x 171 mm (W) x 274 mm (H)
Weight 100.782 lbs (45.81 kgs)

Additional information

Weight 100.782 lbs
Manufacturer

PowerSonic

Product Line
Product Series

PG Series

Model

PG-12V150

Terminal

Recessed M8

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010871

Manufacturers Model #

PG-12V150

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

154 Ah @20 Hr

Capacity @20 Hr

154

Capacity @10 Hr

144

Capacity @1 Hr

84.0

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

12 Years

Service Life

Up to 12 Years

Shelf Life

6

Internal Resistance

4.0 mOhm

Maximum Current

840

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

13.50

Width (In)

6.73

Height - Case (In)

10.79

Height - Overall (In)

11.02

Length (mm)

343

Width (mm)

171

Height - Case (mm)

274

Height - Overall (mm)

280

Weight (lb)

100.782

Weight (kg)

45.81

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
