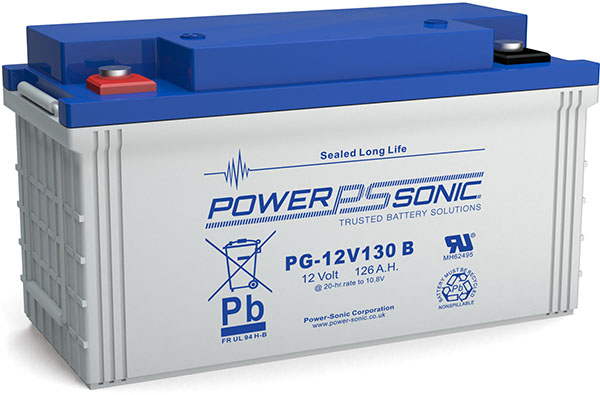

PowerSonic PG-12V130 Lead Acid Battery

As low as $283.14 each

PowerSonic PG Series PG-12V130 12 Volt / 128.4 Ah @20 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PG Series PG-12V130 12 Volt / 128.4 Ah @20 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PG-12V130R
Dimensions 16.06″ (L) x 6.97″ (W) x 8.85″ (H)
Dimensions (mm) 408 mm (L) x 177 mm (W) x 225 mm (H)
Weight 82.9 lbs (37.6 kgs)

Additional information

Weight 82.9 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 Pieces), Box/Case (1 Pieces), Pallet Layer (10 Pieces), Pallet (20 Pieces)

Product Line
Product Series

PG Series

Model

PG-12V130

Terminal

Recessed M8

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

PG-12V130

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

128.4 Ah @20 Hr

Capacity @20 Hr

128.4

Capacity @10 Hr

120.0

Capacity @1 Hr

74.4

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

12 Years

Service Life

Up to 12 Years

Shelf Life

6

Internal Resistance

4.0 mOhm

Maximum Current

840

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

16.06

Width (In)

6.97

Height - Case (In)

8.85

Height - Overall (In)

8.86

Length (mm)

408

Width (mm)

177

Height - Case (mm)

225

Height - Overall (mm)

225

Weight (lb)

82.9

Weight (kg)

37.6

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
