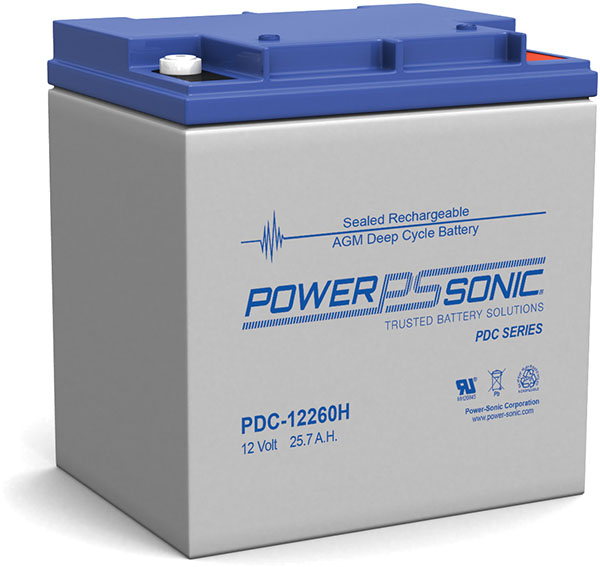

PowerSonic PDC-12260H Lead Acid Battery

PowerSonic PDC Series PDC-12260H 12 Volt / 24 Ah @10 Hr Lead Acid Battery with Recessed M5 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PDC Series PDC-12260H 12 Volt / 24 Ah @10 Hr Lead Acid Battery with Recessed M5 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PDC-12260HR
Dimensions 6.50″ (L) x 4.92″ (W) x 6.89″ (H)
Dimensions (mm) 165 mm (L) x 125 mm (W) x 175 mm (H)
Weight 20.856 lbs (9.48 kgs)

Product Notes

Terminals are reversed compared to other batteries of similar size

Additional information

Weight 20.856 lbs
Manufacturer

PowerSonic

price-discounts

Pallet Layer (40 pieces), Pallet (120 pieces)

Product Line
Product Series

PDC Series

Model

PDC-12260H

Terminal

Recessed M5

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

PDC-12260H

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

24 Ah @10 Hr

Capacity @20 Hr

25.7

Capacity @10 Hr

24

Capacity @1 Hr

15.5

Capacity @15 Min

11.8

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

Deep Cycle VRLA

Design Life
Service Life
Shelf Life

6

Internal Resistance

12.0 mOhm

Maximum Current

257

Cycles @ 80% Discharge

1200

Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

6.50

Width (In)

4.92

Height - Case (In)

6.89

Height - Overall (In)

6.89

Length (mm)

165

Width (mm)

125

Height - Case (mm)

175

Height - Overall (mm)

175

Weight (lb)

20.856

Weight (kg)

9.48

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
