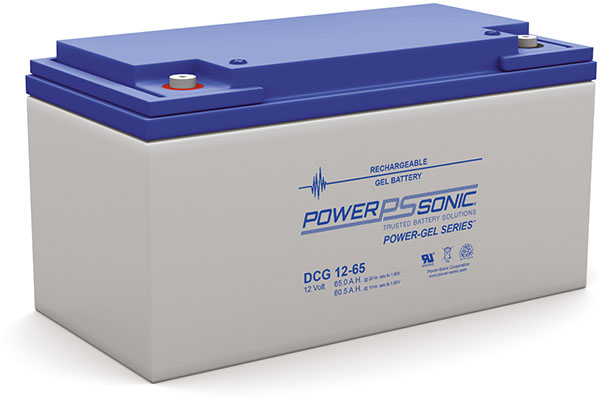

PowerSonic DCG12-65 Lead Acid Battery

PowerSonic DCG Series DCG12-65 12 Volt / 65 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case

Out of stock

Loading...

Description

PowerSonic DCG Series DCG12-65 12 Volt / 65 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-DCG12-65R
Dimensions 12.80″ (L) x 6.57″ (W) x 6.85″ (H)
Dimensions (mm) 325 mm (L) x 167 mm (W) x 174 mm (H)
Weight 52.8 lbs (24 kgs)

Product Notes

Superior cyclic life to AGM technology

Additional information

Weight 23.949922888506 lbs
Manufacturer

PowerSonic

Product Line
Product Series

DCG Series

Model

DCG12-65

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

DCG12-65

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

65 Ah @20 Hr

Capacity @20 Hr

65

Capacity @10 Hr

60.5

Capacity @1 Hr

35.8

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

Gel

Design Life
Service Life
Shelf Life

12

Internal Resistance

7.9 mOhm

Maximum Current
Cycles @ 80% Discharge

600

Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

12.80

Width (In)

6.57

Height - Case (In)

6.85

Height - Overall (In)

6.85

Length (mm)

325

Width (mm)

167

Height - Case (mm)

174

Height - Overall (mm)

174

Weight (lb)

52.8

Weight (kg)

24

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
