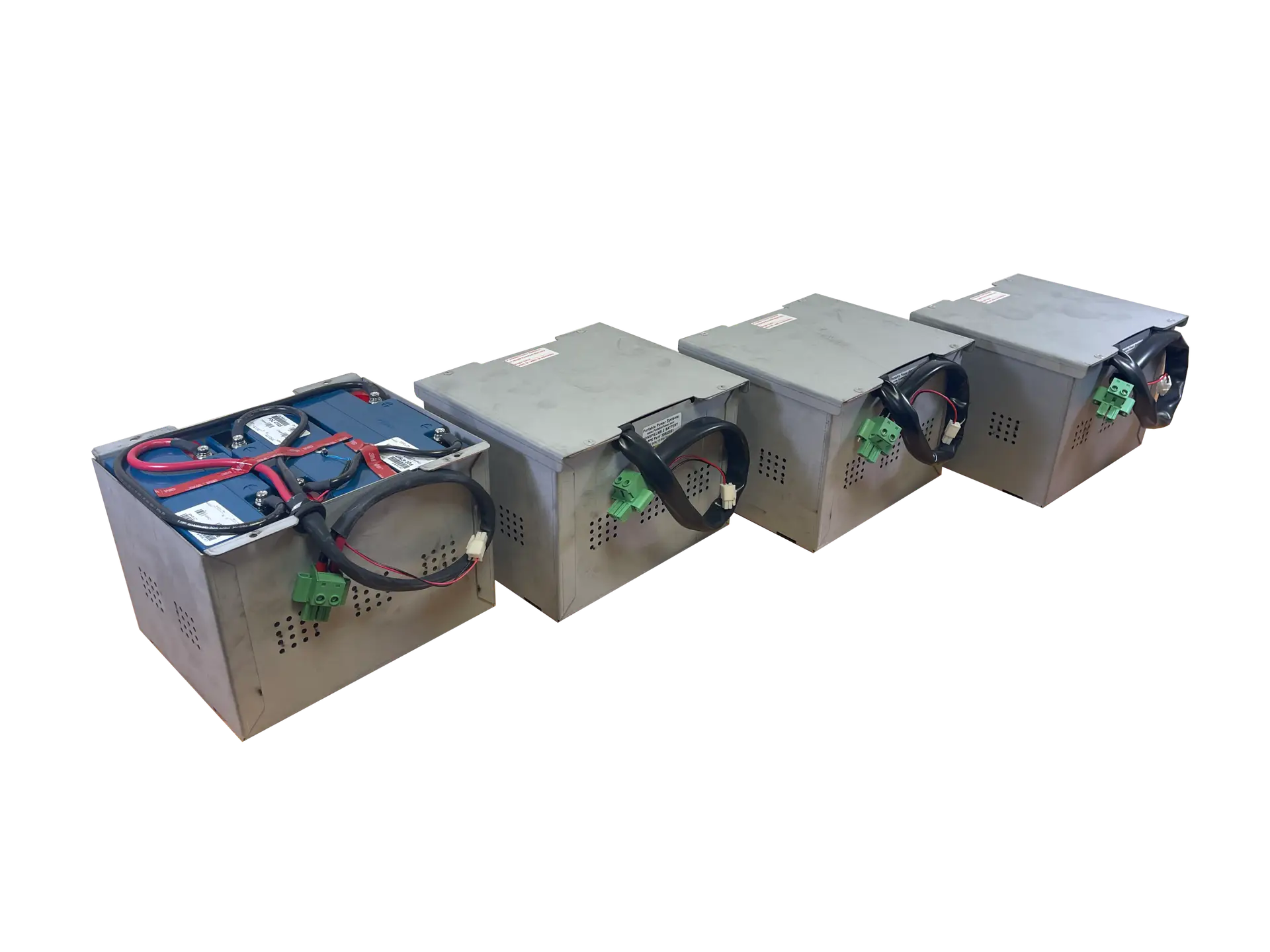

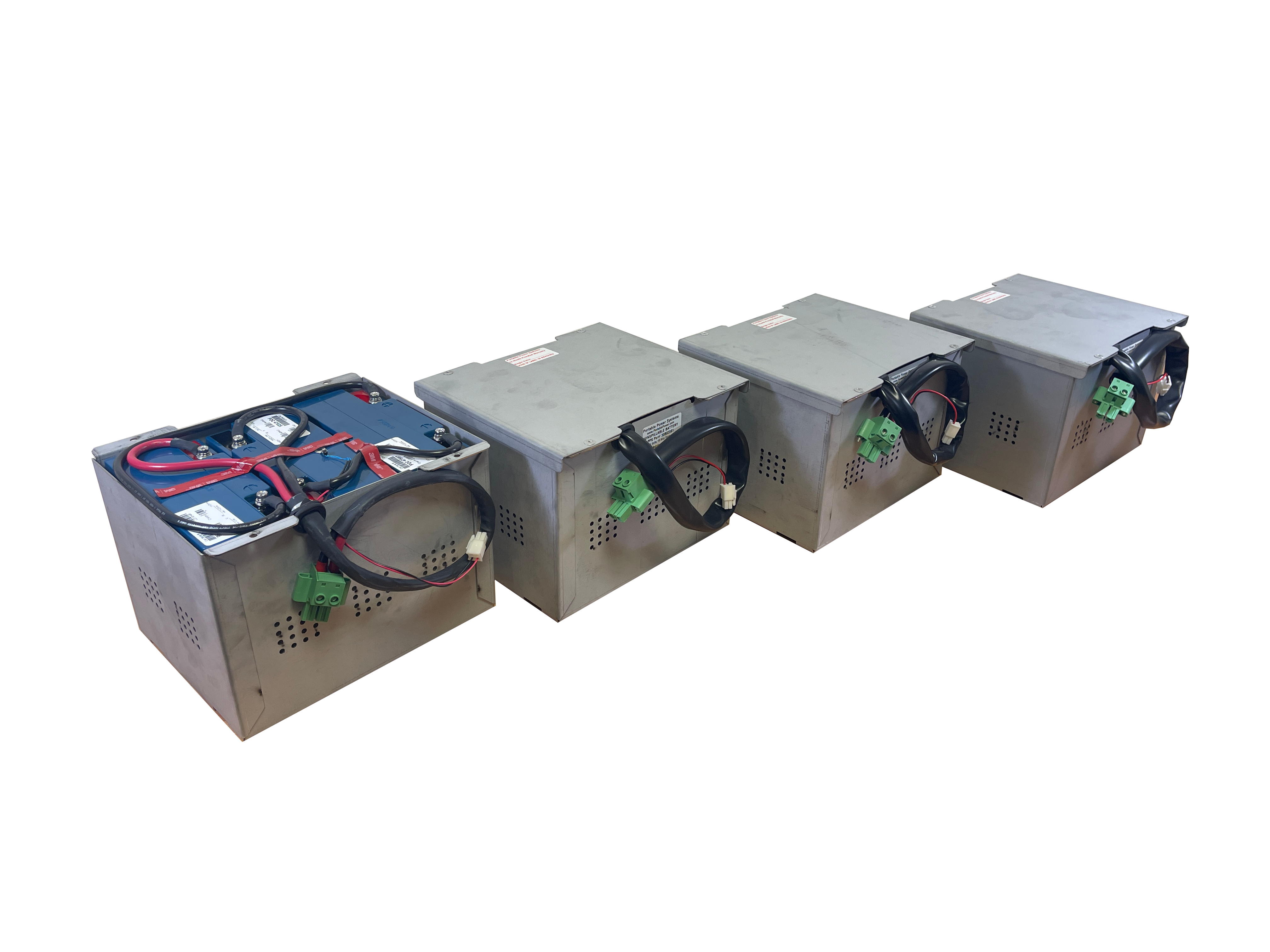

Qty 4 – GE Optima Battery Module (Powersonic)

$2,500.00

(Qty 4) OEM Series XRGEOPT-20PS Modules – 36 Volt / 20 Ah @20 Hr with OEM Plugs

9 in stock

Loading...

Description

(Qty 4) OEM Series XRGEOPT-20PS Modules – 36 Volt / 20 Ah @20 Hr with OEM Plugs

Specifications
Battery Store SKU PP-Q04V36A020
Dimensions 9.25″ (L) x 7.50″ (W) x 6.85″ (H)
Dimensions (mm) 235 mm (L) x 191 mm (W) x 175 mm (H)
Weight 204 lbs (92 kgs)

Product Notes

Uses OEM Power-sonic PDC-12200 batteries. Complete set of four battery modules for one machine. DO NOT MIX MODULES WITH DIFFERENT BATTERY BRANDS! Direct Plug-n-Play operation. Firmware upgrade recommended.

Additional information

Weight 204 lbs
Manufacturer

Portable Power

Product Line

Medical

Product Series

OEM Series

Model

XRGEOPT-20PS

Terminal

Plug

Terminal Layout
Case Material

Steel

UPC Code
Manufacturers Model #

XRGEOPT-20PS

Manufacturers SKU

PP-XRGEOPT-20PS

Deprecated Model #
Applications

GE Optima mobile x-ray machines

Voltage

144

Capacity (Nominal)

20 Ah @20 Hr

Capacity @20 Hr

20

Capacity @10 Hr

18

Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life
Service Life
Shelf Life

12

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

9.25

Width (In)

7.50

Height - Case (In)

6.85

Height - Overall (In)

6.85

Length (mm)

235

Width (mm)

191

Height - Case (mm)

175

Height - Overall (mm)

175

Weight (lb)

204

Weight (kg)

92

BCI Group
Manufacturers Warranty

12 Months – Prorated

Transportation Notes
Certifications
Qty Per Box

1

Qty Per Pallet
