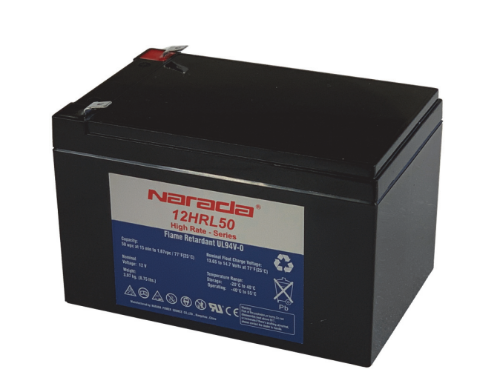

Narada 12HRL50 SLA (AGM) Battery
Narada 12HRL50 Lead Acid High-Rate Series 12 Volt / 12 Ah @ 20 Hr with F2 (0.250″) Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
Narada 12HRL50 Lead Acid High-Rate Series 12 Volt / 12 Ah @ 20 Hr with F2 (0.250″) Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | NA-12HRL50 |
| Dimensions | 5.94″ (L) x 3.86″ (W) x 3.74″ (H) |
| Dimensions (mm) | 151 mm (L) x 98 mm (W) x 96 mm (H) |
| Weight | 9 lbs (3.94 kgs) |
Additional information
| Weight | 9 lbs |
|---|---|
| Manufacturer | Narada |
| Product Line | Lead Acid |
| Product Series | High-Rate Series |
| Model | 12HRL50 |
| Terminal | F2 (0.250") |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | 12HRL50 |
| Applications | UPS |
| Voltage | 12 |
| Capacity (Nominal) | 12 Ah @ 20 Hr |
| Capacity @20 Hr | 12 |
| Chemistry | Lead Acid Calcium |
| Technology | AGM-Lead Calcium |
| Design Life | 6 |
| Service Life | 7 |
| Shelf Life | 6 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Operating Temp Low (°F) | 74 |
| Operating Temp High (°F) | 80 |
| Storage Temp Low (°F) | -4 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 24 |
| Operating Temp High (°C) | 27 |
| Storage Temp Low (°C) | -20 |
| Storage Temp High (°C) | 40 |
| Length (In) | 5.94 |
| Width (In) | 3.86 |
| Height - Case (In) | 3.74 |
| Height - Overall (In) | 3.94 |
| Length (mm) | 151 |
| Width (mm) | 98 |
| Height - Case (mm) | 96 |
| Height - Overall (mm) | 100 |
| Weight (lb) | 9 |
| Weight (kg) | 3.94 |
| BCI Group | M7 |
| Manufacturers Warranty | 5 |
| Transportation Notes | DOT-CFR Title 49, |
