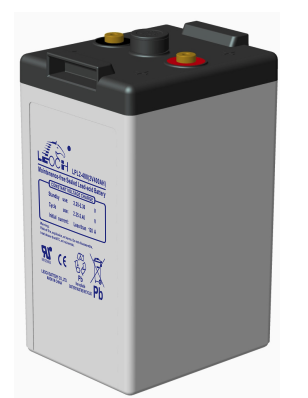

Leoch LPL2-400M SLA (AGM) Battery
Leoch LPL Series LPL2-400M 2 Volt / 400 Ah @10 Hr Battery with Recessed M8 Terminals
Out of stock
Loading...
Description
Leoch LPL Series LPL2-400M 2 Volt / 400 Ah @10 Hr Battery with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LPL2-400MR |
| Dimensions | 6.2″ (L) x 7.1″ (W) x 13.8″ (H) |
| Dimensions (mm) | 158 mm (L) x 181 mm (W) x 350 mm (H) |
| Weight | 49.9 lbs (22.7 kgs) |
Additional information
| Weight | 49.9 lbs |
|---|---|
| Manufacturer | Leoch |
| Product Series | LPL Series |
| Model | LPL2-400M |
| Terminal | Recessed M8 |
| Case Material | ABS Plastic |
| Manufacturers Model # | LPL2-400M |
| Manufacturers SKU | LPL2-400M |
| Voltage | 2 |
| Capacity (Nominal) | 400 Ah @10 Hr |
| Capacity @20 Hr | 424 |
| Capacity @10 Hr | 400 |
| Capacity @1 Hr | 253 |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 16 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 0.6 mOhms |
| Maximum Current | 3200 Amps |
| Standby Charge Voltage | 2.23-2.27 V @ 25C |
| Cycle Charge Voltage | 2.4-2.5 V @ 25C |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 6.2 |
| Width (In) | 7.1 |
| Height - Case (In) | 13.8 |
| Height - Overall (In) | 14.4 |
| Length (mm) | 158 |
| Width (mm) | 181 |
| Height - Case (mm) | 350 |
| Height - Overall (mm) | 365 |
| Weight (lb) | 49.9 |
| Weight (kg) | 22.7 |
| Manufacturers Warranty | 24 Months |
| Transportation Notes | DOT-CFR Title 49 parts 171-376 |
| Certifications | ISO14001, ISO9001, IATF16949, ISO4687 |
