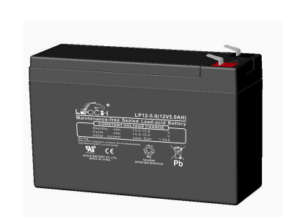

Leoch LPL12-4.5 SLA (AGM) Battery
Leoch LPL Series LPL12-4.5 12 Volt / 4.5 Ah @20 Hr Battery with F1 (0.187″) Terminals
Out of stock
Loading...
Description
Leoch LPL Series LPL12-4.5 12 Volt / 4.5 Ah @20 Hr Battery with F1 (0.187″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LPL12-4.5F1 |
| Dimensions | 5.9″ (L) x 2.1″ (W) x 3.7″ (H) |
| Dimensions (mm) | 151 mm (L) x 53 mm (W) x 93 mm (H) |
| Weight | 4.2 lbs (1.9 kgs) |
Additional information
| Weight | 4.2 lbs |
|---|---|
| Manufacturer | Leoch |
| Product Series | LPL Series |
| Model | LPL12-4.5 |
| Terminal | F1 (0.187") |
| Case Material | ABS Plastic |
| Manufacturers Model # | LPL12-4.5 |
| Manufacturers SKU | LPL12-4.5 |
| Voltage | 12 |
| Capacity (Nominal) | 4.5 Ah @20 Hr |
| Capacity @20 Hr | 4.5 |
| Capacity @10 Hr | 4.47 |
| Capacity @1 Hr | 3.29 |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 10-12 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 56 mOhms |
| Maximum Current | 67.5 Amps |
| Standby Charge Voltage | 13.5-13.8 V @ 25C |
| Cycle Charge Voltage | 14.4-15.0 V @ 25C |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 5.9 |
| Width (In) | 2.1 |
| Height - Case (In) | 3.7 |
| Height - Overall (In) | 3.9 |
| Length (mm) | 151 |
| Width (mm) | 53 |
| Height - Case (mm) | 93 |
| Height - Overall (mm) | 99 |
| Weight (lb) | 4.2 |
| Weight (kg) | 1.9 |
| Manufacturers Warranty | 24 Months |
| Transportation Notes | DOT-CFR Title 49 parts 171-388 |
| Certifications | ISO14001, ISO9001, IATF16949, ISO4699 |
