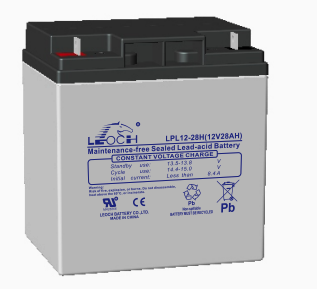

Leoch LPL12-28H SLA (AGM) Battery
$107.25
Leoch LPL Series LPL12-28H 12 Volt / 28 Ah @20 Hr Battery with Nut & Bolt Terminals
Out of stock
Loading...
Description
Leoch LPL Series LPL12-28H 12 Volt / 28 Ah @20 Hr Battery with Nut & Bolt Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LPL12-28HNB |
| Dimensions | ” (L) x ” (W) x ” (H) |
| Dimensions (mm) | mm (L) x mm (W) x mm (H) |
| Weight | lbs ( kgs) |
Additional information
| Weight | 20 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | Each (1 pieces), Box/Case (10 pieces), Pallet (20 pieces) |
| Product Line | |
| Product Series | LPL Series |
| Model | LPL12-28H |
| Terminal | Nut & Bolt |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LPL12-28H |
| Manufacturers SKU | LPL12-28H |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 28 Ah @20 Hr |
| Capacity @20 Hr | 28 |
| Capacity @10 Hr | 26.3 |
| Capacity @1 Hr | 18.7 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 10-12 Years |
| Service Life | |
| Shelf Life | 6 Months |
| Internal Resistance | 14 mOhms |
| Maximum Current | 420 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5-13.8 V @ 25C |
| Cycle Charge Voltage | 14.4-15.0 V @ 25C |
| Maximum Charge Current | |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 6.5 |
| Width (In) | 4.9 |
| Height - Case (In) | 6.9 |
| Height - Overall (In) | 6.9 |
| Length (mm) | 164 |
| Width (mm) | 125 |
| Height - Case (mm) | 176 |
| Height - Overall (mm) | 176 |
| Weight (lb) | 20 |
| Weight (kg) | 9.1 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
