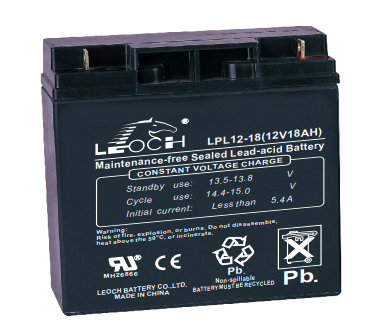

Leoch LPL12-18 SLA (AGM) Battery
Leoch LPL Series LPL12-18 12 Volt / 18 Ah @20 Hr Battery with Nut & Bolt Terminals
Out of stock
Loading...
Description
Leoch LPL Series LPL12-18 12 Volt / 18 Ah @20 Hr Battery with Nut & Bolt Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LPL12-18NB |
| Dimensions | 7.1″ (L) x 3″ (W) x 6.6″ (H) |
| Dimensions (mm) | 181.5 mm (L) x 76.5 mm (W) x 167.5 mm (H) |
| Weight | 12.5 lbs (5.7 kgs) |
Additional information
| Weight | 12.5 lbs |
|---|---|
| Manufacturer | Leoch |
| Product Series | LPL Series |
| Model | LPL12-18 |
| Terminal | Nut & Bolt |
| Case Material | ABS Plastic |
| Manufacturers Model # | LPL12-18 |
| Manufacturers SKU | LPL12-18 |
| Voltage | 12 |
| Capacity (Nominal) | 18 Ah @20 Hr |
| Capacity @20 Hr | 18 |
| Capacity @10 Hr | 17.1 |
| Capacity @1 Hr | 12.1 |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 10-12 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 16 mOhms |
| Maximum Current | 270 Amps |
| Standby Charge Voltage | 13.5-13.8 V @ 25C |
| Cycle Charge Voltage | 14.4-15.0 V @ 25C |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.1 |
| Width (In) | 3 |
| Height - Case (In) | 6.6 |
| Height - Overall (In) | 6.6 |
| Length (mm) | 181.5 |
| Width (mm) | 76.5 |
| Height - Case (mm) | 167.5 |
| Height - Overall (mm) | 167.5 |
| Weight (lb) | 12.5 |
| Weight (kg) | 5.7 |
| Manufacturers Warranty | 24 Months |
| Transportation Notes | DOT-CFR Title 49 parts 171-394 |
| Certifications | ISO14001, ISO9001, IATF16949, ISO4705 |
