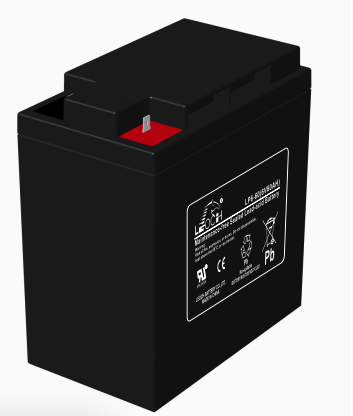

Leoch LP6-60 SLA (AGM) Battery
Leoch LP Series LP6-60 6 Volt / 60 Ah @10 Hr Battery with F2 (0.250″) Terminals
Out of stock
Loading...
Description
Leoch LP Series LP6-60 6 Volt / 60 Ah @10 Hr Battery with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP6-60F2 |
| Dimensions | 7.28″ (L) x 4.41″ (W) x 8.07″ (H) |
| Dimensions (mm) | 185 mm (L) x 112 mm (W) x 205 mm (H) |
| Weight | 20 lbs (9.1 kgs) |
Additional information
| Weight | 20 lbs |
|---|---|
| Manufacturer | Leoch |
| Product Series | LP Series |
| Model | LP6-60 |
| Terminal | F2 (0.250") |
| Case Material | ABS Plastic |
| Manufacturers Model # | LP6-60 |
| Manufacturers SKU | LP6-60 |
| Voltage | 6 |
| Capacity (Nominal) | 60 Ah @10 Hr |
| Capacity @20 Hr | 61.8 |
| Capacity @10 Hr | 60 |
| Capacity @1 Hr | 37.5 |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 6.0 mOhms |
| Maximum Current | 600 Amps |
| Standby Charge Voltage | 6.75-6.9 V @ 25C |
| Cycle Charge Voltage | 7.2-7.5 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.28 |
| Width (In) | 4.41 |
| Height - Case (In) | 8.07 |
| Height - Overall (In) | 8.07 |
| Length (mm) | 185 |
| Width (mm) | 112 |
| Height - Case (mm) | 205 |
| Height - Overall (mm) | 205 |
| Weight (lb) | 20 |
| Weight (kg) | 9.1 |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | DOT-CFR Title 49 parts 171-272 |
| Certifications | ISO14001, ISO9001, IATF16949, ISO4583 |
