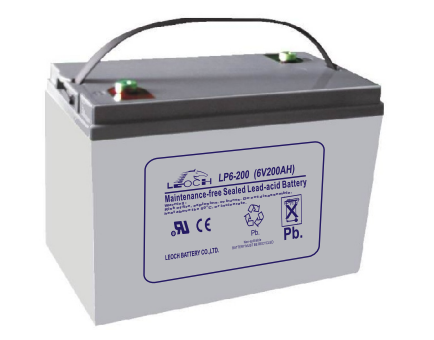

Leoch LP6-200 SLA (AGM) Battery
Leoch LP Series LP6-200 6 Volt / 200 Ah @10 Hr Battery with Recessed M8 Terminals
Out of stock
Loading...
Description
Leoch LP Series LP6-200 6 Volt / 200 Ah @10 Hr Battery with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP6-200R |
| Dimensions | 12.68″ (L) x 7.01″ (W) x 8.9″ (H) |
| Dimensions (mm) | 322 mm (L) x 178 mm (W) x 226 mm (H) |
| Weight | 66.7 lbs (30.3 kgs) |
Additional information
| Weight | 66.7 lbs |
|---|---|
| Manufacturer | Leoch |
| Product Series | LP Series |
| Model | LP6-200 |
| Terminal | Recessed M8 |
| Case Material | ABS Plastic |
| Manufacturers Model # | LP6-200 |
| Manufacturers SKU | LP6-200 |
| Voltage | 6 |
| Capacity (Nominal) | 200 Ah @10 Hr |
| Capacity @20 Hr | 208 |
| Capacity @10 Hr | 200 |
| Capacity @1 Hr | 122 |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 1.5 mOhms |
| Maximum Current | 2000 Amps |
| Standby Charge Voltage | 6.75-6.9 V @ 25C |
| Cycle Charge Voltage | 7.2-7.5 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 12.68 |
| Width (In) | 7.01 |
| Height - Case (In) | 8.9 |
| Height - Overall (In) | 9.13 |
| Length (mm) | 322 |
| Width (mm) | 178 |
| Height - Case (mm) | 226 |
| Height - Overall (mm) | 232 |
| Weight (lb) | 66.7 |
| Weight (kg) | 30.3 |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | DOT-CFR Title 49 parts 171-273 |
| Certifications | ISO14001, ISO9001, IATF16949, ISO4584 |
