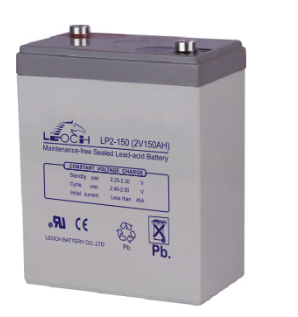

Leoch LP2-150 SLA (AGM) Battery
Leoch LP Series LP2-150 2 Volt / 150 Ah @10 Hr Battery with Recessed M6 Terminals
Loading...
Description
Leoch LP Series LP2-150 2 Volt / 150 Ah @10 Hr Battery with Recessed M6 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP2-150R |
| Dimensions | 6.69″ (L) x 3.86″ (W) x 8.07″ (H) |
| Dimensions (mm) | 170 mm (L) x 98 mm (W) x 205 mm (H) |
| Weight | 18.5 lbs (8.4 kgs) |
Additional information
| Weight | 18.5 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | LP Series |
| Model | LP2-150 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LP2-150 |
| Manufacturers SKU | LP2-150 |
| Deprecated Model # | |
| Applications | |
| Voltage | 2 |
| Capacity (Nominal) | 150 Ah @10 Hr |
| Capacity @20 Hr | 158 |
| Capacity @10 Hr | 150 |
| Capacity @1 Hr | 96.5 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 0.9 mOhms |
| Maximum Current | 1200 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 2.25-2.30 V @ 25C |
| Cycle Charge Voltage | 2.4-2.5 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 6.69 |
| Width (In) | 3.86 |
| Height - Case (In) | 8.07 |
| Height - Overall (In) | 8.43 |
| Length (mm) | 170 |
| Width (mm) | 98 |
| Height - Case (mm) | 205 |
| Height - Overall (mm) | 214 |
| Weight (lb) | 18.5 |
| Weight (kg) | 8.4 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
