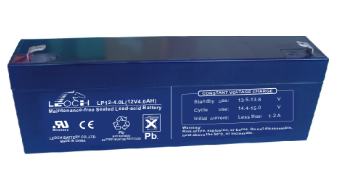

Leoch LP12-4.0L SLA (AGM) Battery

Leoch LP Series LP12-4.0L 12 Volt / 4.0 Ah @20 Hr Battery with F1 (0.187″) Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch LP Series LP12-4.0L 12 Volt / 4.0 Ah @20 Hr Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU LE-LP12-4.0LF1
Dimensions 5.94″ (L) x 2.56″ (W) x 3.68″ (H)
Dimensions (mm) 151 mm (L) x 65 mm (W) x 93.5 mm (H)
Weight 3 lbs (1.38 kgs)

Additional information

Weight 3 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LP Series

Model

LP12-4.0L

Terminal

F1 (0.187")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LP12-4.0L

Manufacturers SKU

LP12-4.0L

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

4.0 Ah @20 Hr

Capacity @20 Hr

4

Capacity @10 Hr

3.72

Capacity @1 Hr

2.33

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance

63 mOhms

Maximum Current

60 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

13.5-13.8 V @ 25C

Cycle Charge Voltage

14.4-15.0 V @ 25C

Maximum Charge Current

C/3

Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

5.94

Width (In)

2.56

Height - Case (In)

3.68

Height - Overall (In)

3.92

Length (mm)

151

Width (mm)

65

Height - Case (mm)

93.5

Height - Overall (mm)

99.5

Weight (lb)

3

Weight (kg)

1.38

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
