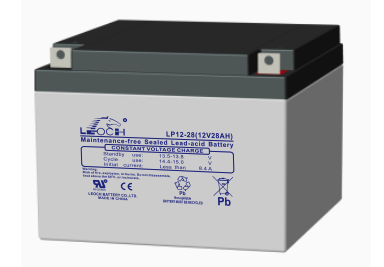

Leoch LP12-28 SLA (AGM) Battery
Leoch LP Series LP12-28 12 Volt / 28 Ah @20 Hr Battery with Nut & Bolt Terminals
Out of stock
Loading...
Description
Leoch LP Series LP12-28 12 Volt / 28 Ah @20 Hr Battery with Nut & Bolt Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP12-28NB |
| Dimensions | 6.54″ (L) x 6.89″ (W) x 4.92″ (H) |
| Dimensions (mm) | 166 mm (L) x 175 mm (W) x 125 mm (H) |
| Weight | 18.5 lbs (8.4 kgs) |
Additional information
| Weight | 18.5 lbs |
|---|---|
| Manufacturer | Leoch |
| Product Series | LP Series |
| Model | LP12-28 |
| Terminal | Nut & Bolt |
| Case Material | ABS Plastic |
| Manufacturers Model # | LP12-28 |
| Manufacturers SKU | LP12-28 |
| Voltage | 12 |
| Capacity (Nominal) | 28 Ah @20 Hr |
| Capacity @20 Hr | 28 |
| Capacity @10 Hr | 26.3 |
| Capacity @1 Hr | 18.2 |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 14 mOhms |
| Maximum Current | 420 Amps |
| Standby Charge Voltage | 13.5-13.8 V @ 25C |
| Cycle Charge Voltage | 14.4-15.0 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 6.54 |
| Width (In) | 6.89 |
| Height - Case (In) | 4.92 |
| Height - Overall (In) | 4.92 |
| Length (mm) | 166 |
| Width (mm) | 175 |
| Height - Case (mm) | 125 |
| Height - Overall (mm) | 125 |
| Weight (lb) | 18.5 |
| Weight (kg) | 8.4 |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | DOT-CFR Title 49 parts 171-266 |
| Certifications | ISO14001, ISO9001, IATF16949, ISO4577 |
