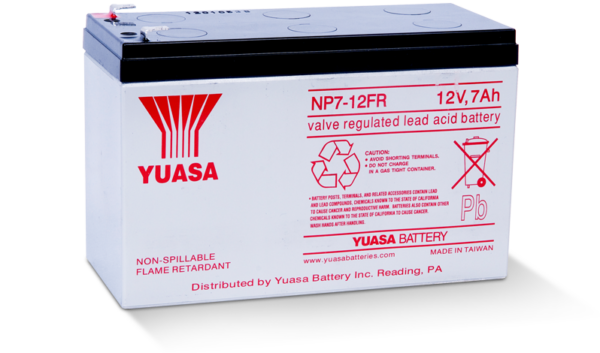

GS Yuasa NP7-12FR F2 SLA (AGM) Battery

As low as $19.01 each

GS Yuasa NP Series NP7-12FR F2 12 Volt / 7 Ah @20 Hr with F2 (0.250″) Terminals

Loading...

Description

GS Yuasa NP Series NP7-12FR F2 12 Volt / 7 Ah @20 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU GS-NP7-12F2FR
Dimensions 5.94″ (L) x 2.56″ (W) x 3.62″ (H)
Dimensions (mm) 151 mm (L) x 65 mm (W) x 92 mm (H)
Weight 5.5 lbs (2.5 kgs)

Additional information

Weight 5.5 lbs
Manufacturer

GS Yuasa

price-discounts

Each (1 Pieces), Box/Case (8 Pieces), Pallet Layer (72 Pieces), Pallet (360 Pieces)

Product Line
Product Series

NP Series

Model

NP7-12

Terminal

F2 (0.250")

Terminal Layout
Case Material

Flame Retardant UL94-V0

UPC Code
Manufacturers Model #

NP7-12FR F2

Manufacturers SKU

NP7-12FR F2

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

7 Ah @20 Hr

Capacity @20 Hr

7

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 Volts

Cycle Charge Voltage

14.4 to 15.0 Volts

Maximum Charge Current
Operating Temp Low (°F)

-5

Operating Temp High (°F)

122

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

5.94

Width (In)

2.56

Height - Case (In)

3.62

Height - Overall (In)

3.84

Length (mm)

151

Width (mm)

65

Height - Case (mm)

92

Height - Overall (mm)

98

Weight (lb)

5.5

Weight (kg)

2.5

BCI Group
Manufacturers Warranty

24 Months

Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
