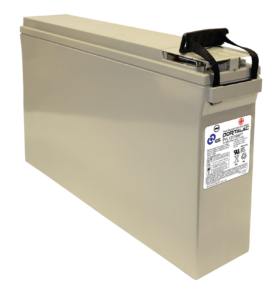

GS Yuasa FXH185-12IFR SLA (AGM) Battery
GS Yuasa FXH Series FXH185-12IFR 12 Volt / 3800 W @ 15 Min with Recessed M6 Terminals
Loading...
Description
GS Yuasa FXH Series FXH185-12IFR 12 Volt / 3800 W @ 15 Min with Recessed M6 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | GS-FXH185-12RFR |
| Dimensions | 21.89″ (L) x 4.92″ (W) x 12.48″ (H) |
| Dimensions (mm) | 556 mm (L) x 125 mm (W) x 317 mm (H) |
| Weight | 133.5 lbs (60.7 kgs) |
Additional information
| Weight | 133.5 lbs |
|---|---|
| Manufacturer | GS Yuasa |
| price-discounts | |
| Product Line | |
| Product Series | FXH Series |
| Model | FXH185-12 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | FXH185-12IFR |
| Manufacturers SKU | FXH185-12IFR |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 3800 W @ 15 Min |
| Capacity @20 Hr | |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | 10 Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 Volts |
| Cycle Charge Voltage | 14.4 to 15.0 Volts |
| Maximum Charge Current | |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 21.89 |
| Width (In) | 4.92 |
| Height - Case (In) | 12.48 |
| Height - Overall (In) | 12.48 |
| Length (mm) | 556 |
| Width (mm) | 125 |
| Height - Case (mm) | 317 |
| Height - Overall (mm) | 317 |
| Weight (lb) | 133.5 |
| Weight (kg) | 60.7 |
| BCI Group | |
| Manufacturers Warranty | 24 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
