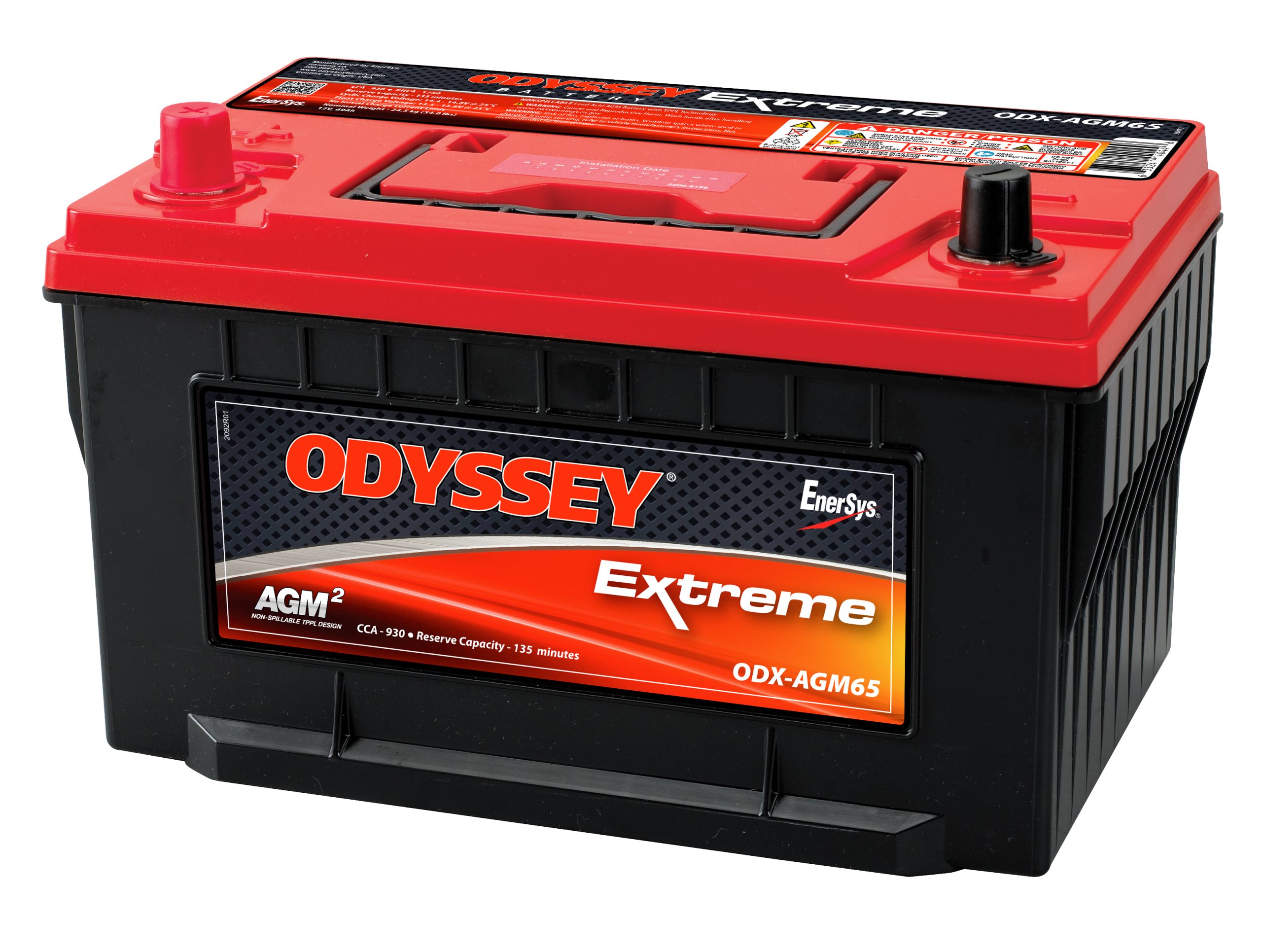

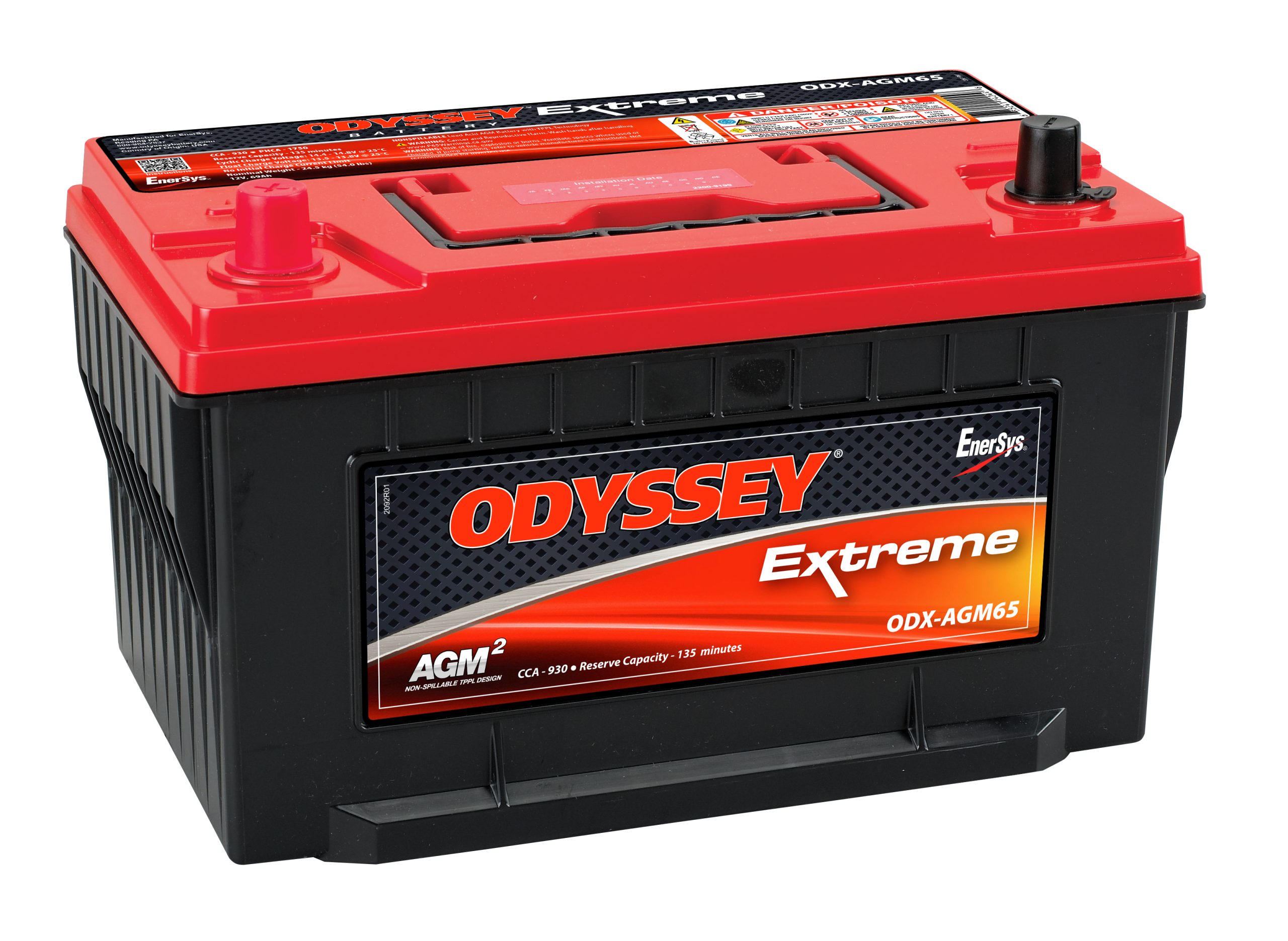

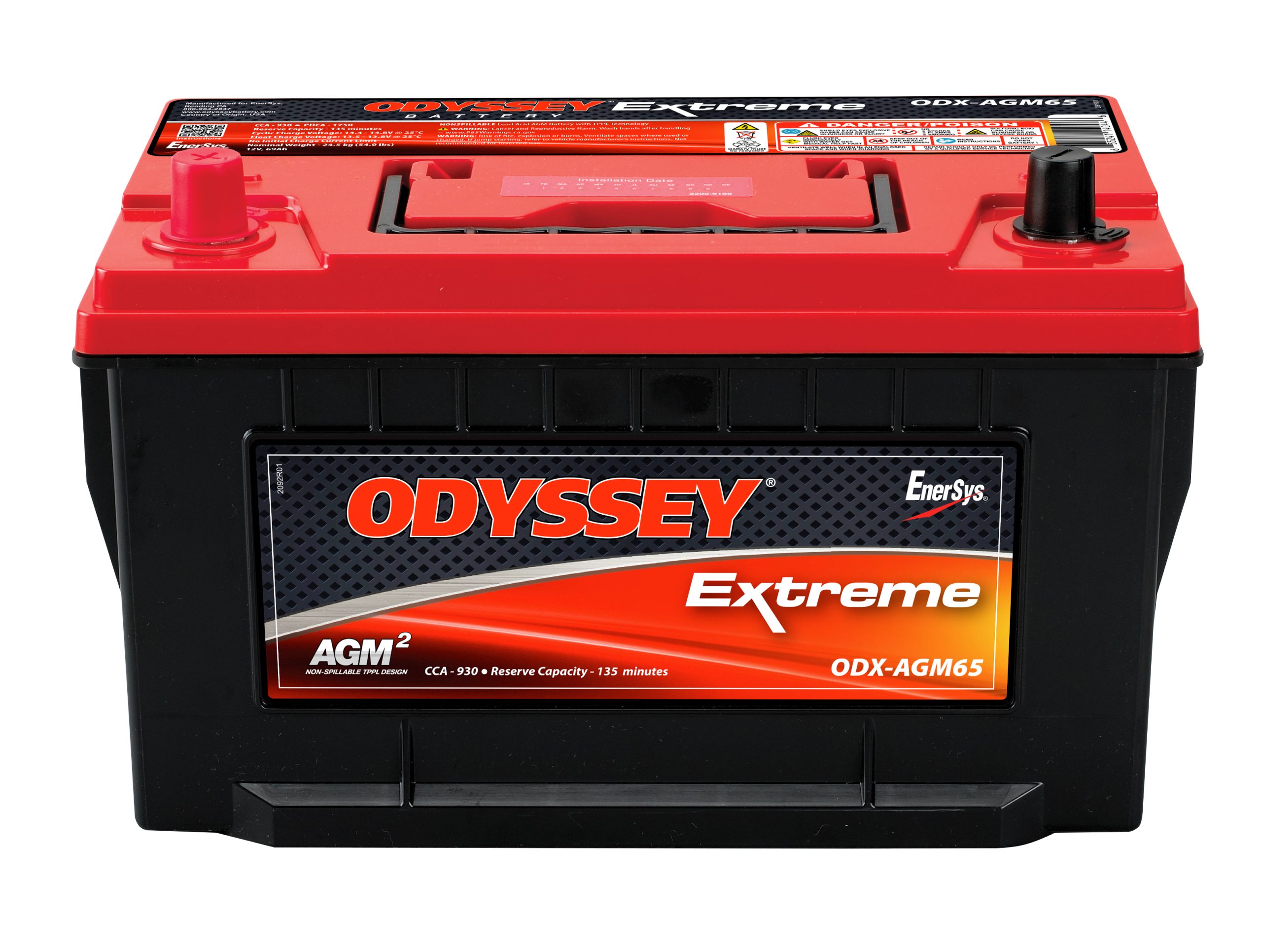

EnerSys Odyssey ODX-AGM65 Lead Acid (AGM-TPPL) Battery

As low as $415.60 each

EnerSys Odyssey Extreme Series ODX-AGM65 12 Volt / 950 CCA with SAE Post Terminals

Loading...

Description

EnerSys Odyssey Extreme Series ODX-AGM65 12 Volt / 950 CCA with SAE Post Terminals

Specifications
Battery Store SKU EN-ODX-AGM65SA
Dimensions 11.8″ (L) x 7.2″ (W) x 6.8″ (H)
Dimensions (mm) 301 mm (L) x 183 mm (W) x 173 mm (H)
Weight 54 lbs (24.5 kgs)

Additional information

Weight 54 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Pallet Layer (6 Pieces), Pallet (24 Pieces)

Product Line

Odyssey

Product Series

Extreme Series

Model

ODX-AGM65

Terminal

SAE Post

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

ODX-AGM65

Manufacturers SKU

0787-2020

Deprecated Model #

65-PC1750

Applications
Voltage

12

Capacity (Nominal)

950 CCA

Capacity @20 Hr

74

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

950

PHCA

1750

Reserve Capacity

145

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

11.8

Width (In)

7.2

Height - Case (In)

6.8

Height - Overall (In)

7.5

Length (mm)

301

Width (mm)

183

Height - Case (mm)

173

Height - Overall (mm)

190

Weight (lb)

54

Weight (kg)

24.5

BCI Group

Group 65

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
