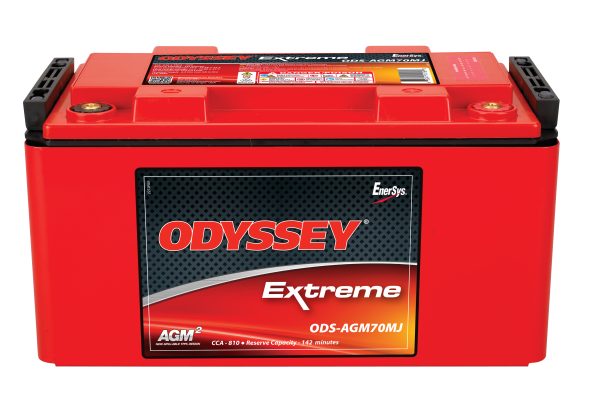

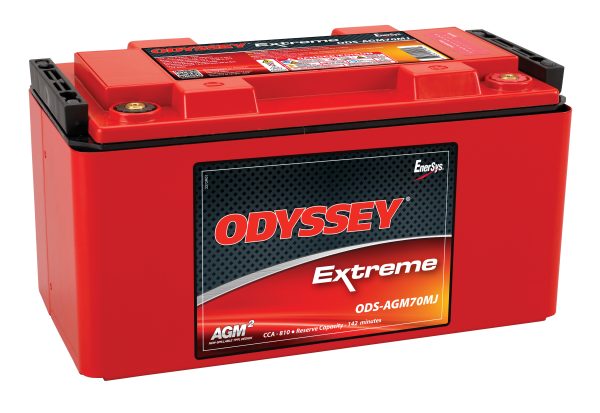

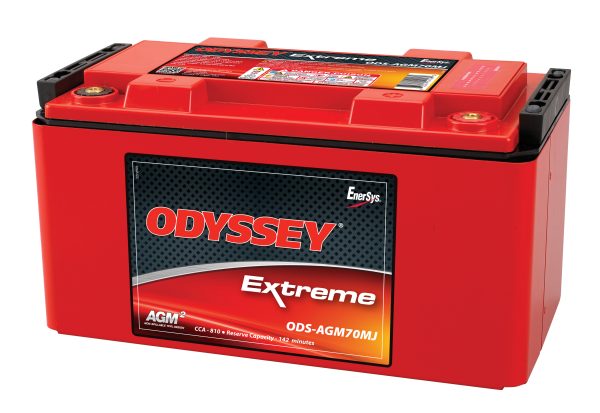

EnerSys Odyssey ODS-AGM70MJ Lead Acid (AGM-TPPL) Battery

As low as $483.25 each

EnerSys Odyssey Powersports Series ODS-AGM70MJ 12 Volt / 810 CCA with Recessed M6 Terminals

Loading...

Description

EnerSys Odyssey Powersports Series ODS-AGM70MJ 12 Volt / 810 CCA with Recessed M6 Terminals

Specifications
Battery Store SKU EN-ODS-AGM70RMJ
Dimensions 13″ (L) x 6.6″ (W) x 6.9″ (H)
Dimensions (mm) 331 mm (L) x 168 mm (W) x 176 mm (H)
Weight 61 lbs (28 kgs)

Additional information

Weight 61 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Pallet Layer (6 Pieces), Pallet (24 Pieces)

Product Line

Odyssey

Product Series

Powersports Series

Model

ODS-AGM70

Terminal

Recessed M6

Terminal Layout
Case Material

Metal Jacket

UPC Code
Manufacturers Model #

ODS-AGM70MJ

Manufacturers SKU
Deprecated Model #

PC1700MJ

Applications
Voltage

12

Capacity (Nominal)

810 CCA

Capacity @20 Hr

68

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

810

PHCA

1550

Reserve Capacity

142

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

13

Width (In)

6.6

Height - Case (In)

6.9

Height - Overall (In)

6.9

Length (mm)

331

Width (mm)

168

Height - Case (mm)

176

Height - Overall (mm)

176

Weight (lb)

61

Weight (kg)

28

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
