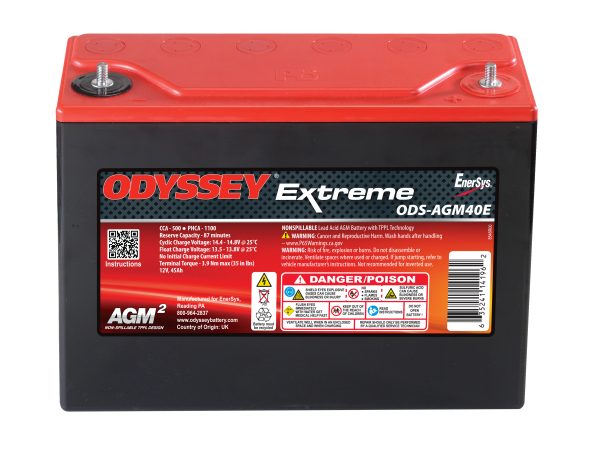

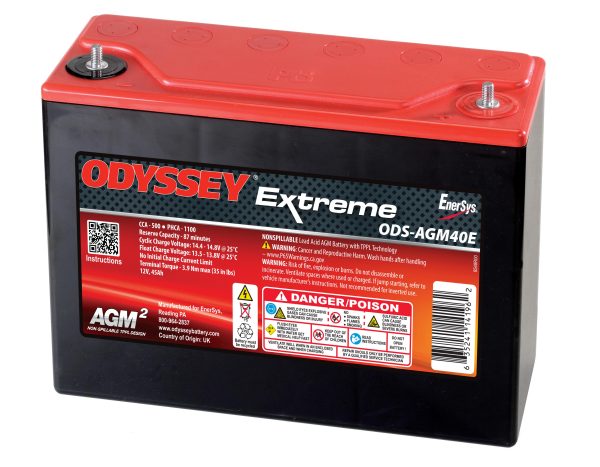

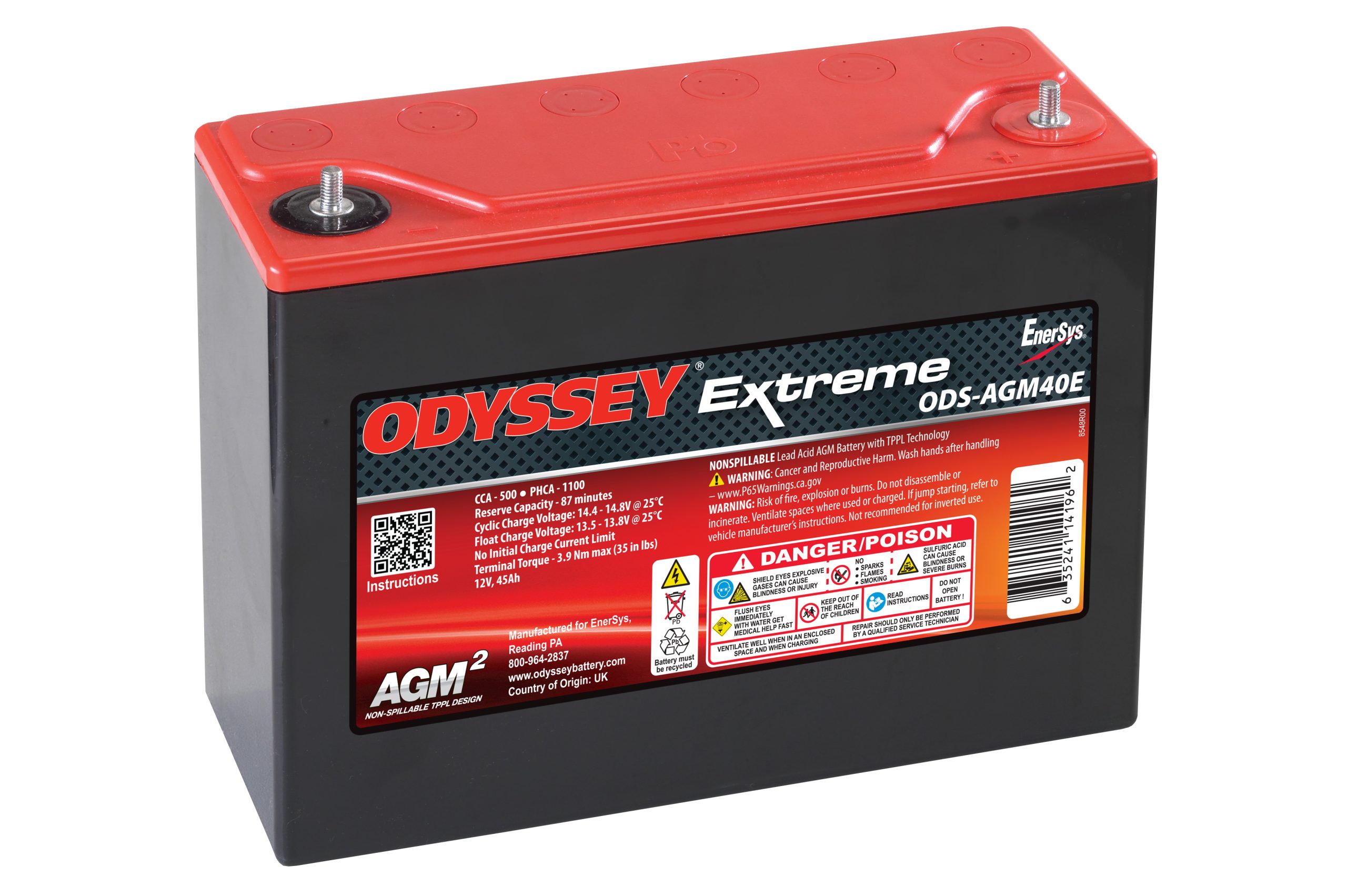

EnerSys Odyssey ODS-AGM40E Lead Acid (AGM-TPPL) Battery

As low as $328.90 each

EnerSys Odyssey Powersports Series ODS-AGM40E 12 Volt / 500 CCA with Threaded Post M6 Terminals

Loading...

Description

EnerSys Odyssey Powersports Series ODS-AGM40E 12 Volt / 500 CCA with Threaded Post M6 Terminals

Specifications
Battery Store SKU EN-ODS-AGM40ETP
Dimensions 9.8″ (L) x 3.8″ (W) x 7.7″ (H)
Dimensions (mm) 250 mm (L) x 97 mm (W) x 196 mm (H)
Weight 28 lbs (13 kgs)

Additional information

Weight 28 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Pallet Layer (18 Pieces), Pallet (72 Pieces)

Product Line

Odyssey

Product Series

Powersports Series

Model

ODS-AGM40E

Terminal

Threaded Post M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

ODS-AGM40E

Manufacturers SKU
Deprecated Model #

PC1100

Applications
Voltage

12

Capacity (Nominal)

500 CCA

Capacity @20 Hr

45

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

500

PHCA

1100

Reserve Capacity

87

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

9.8

Width (In)

3.8

Height - Case (In)

7.7

Height - Overall (In)

8.1

Length (mm)

250

Width (mm)

97

Height - Case (mm)

196

Height - Overall (mm)

206

Weight (lb)

28

Weight (kg)

13

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
