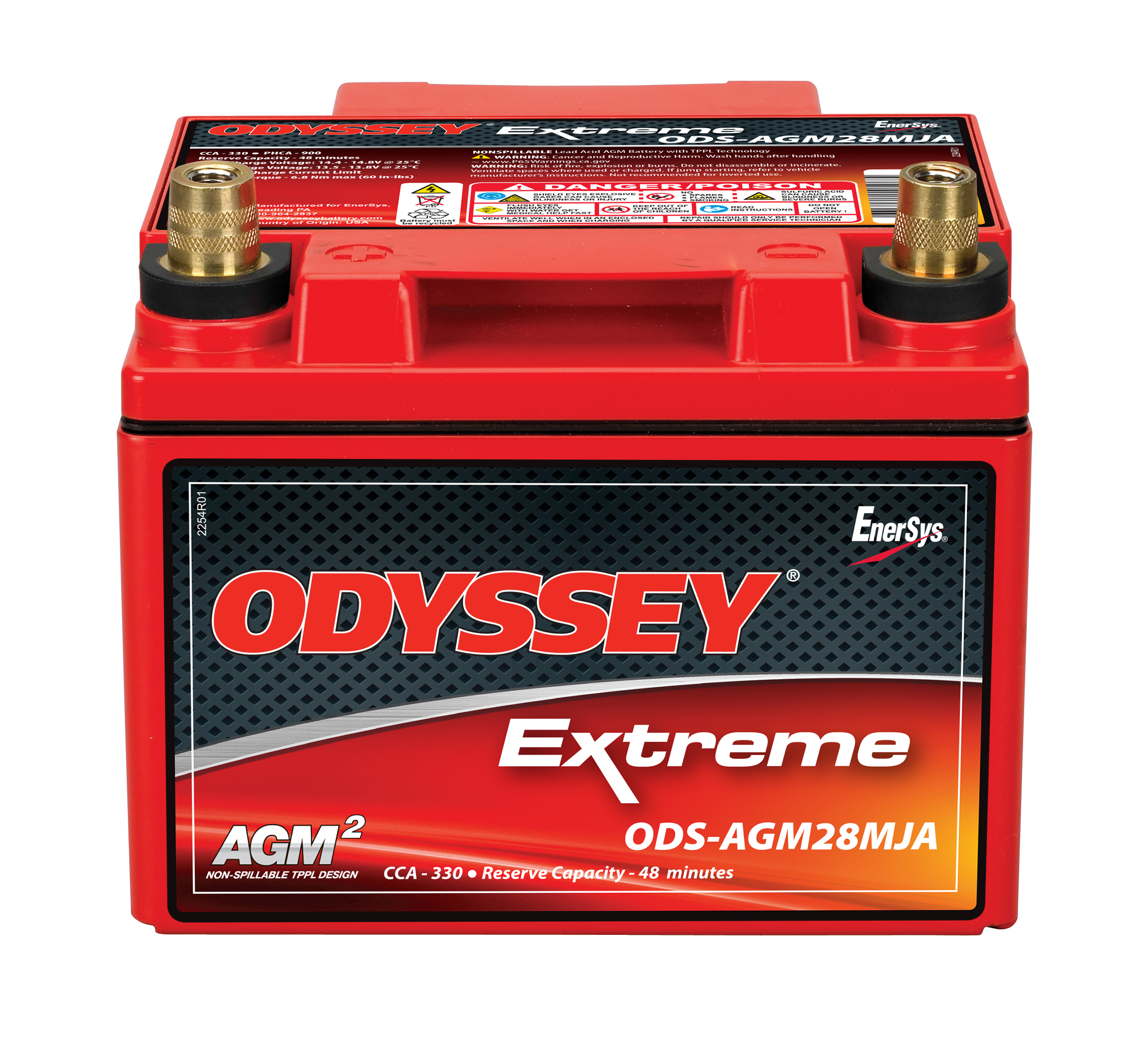

EnerSys Odyssey ODS-AGM28MJA Lead Acid (AGM-TPPL) Battery

As low as $286.70 each

EnerSys Odyssey Powersports Series ODS-AGM28MJA 12 Volt / 330 CCA with SAE Post Terminals

Loading...

Description

EnerSys Odyssey Powersports Series ODS-AGM28MJA 12 Volt / 330 CCA with SAE Post Terminals

Specifications
Battery Store SKU EN-ODS-AGM28SAMJ
Dimensions 6.6″ (L) x 6.9″ (W) x 5″ (H)
Dimensions (mm) 167 mm (L) x 176 mm (W) x 127 mm (H)
Weight 24 lbs (11 kgs)

Additional information

Weight 24 lbs
Manufacturer

EnerSys

price-discounts

Each (1 pieces), Pallet Layer (9 pieces), Pallet (36 pieces)

Product Line

Odyssey

Product Series

Powersports Series

Model

ODS-AGM28

Terminal

SAE Post

Terminal Layout
Case Material

Metal Jacket

UPC Code
Manufacturers Model #

ODS-AGM28MJA

Manufacturers SKU
Deprecated Model #

PC925MJA

Applications
Voltage

12

Capacity (Nominal)

330 CCA

Capacity @20 Hr

28

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

330

PHCA

900

Reserve Capacity

48

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

6.6

Width (In)

6.9

Height - Case (In)

5

Height - Overall (In)

5

Length (mm)

167

Width (mm)

176

Height - Case (mm)

127

Height - Overall (mm)

127

Weight (lb)

24

Weight (kg)

11

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
