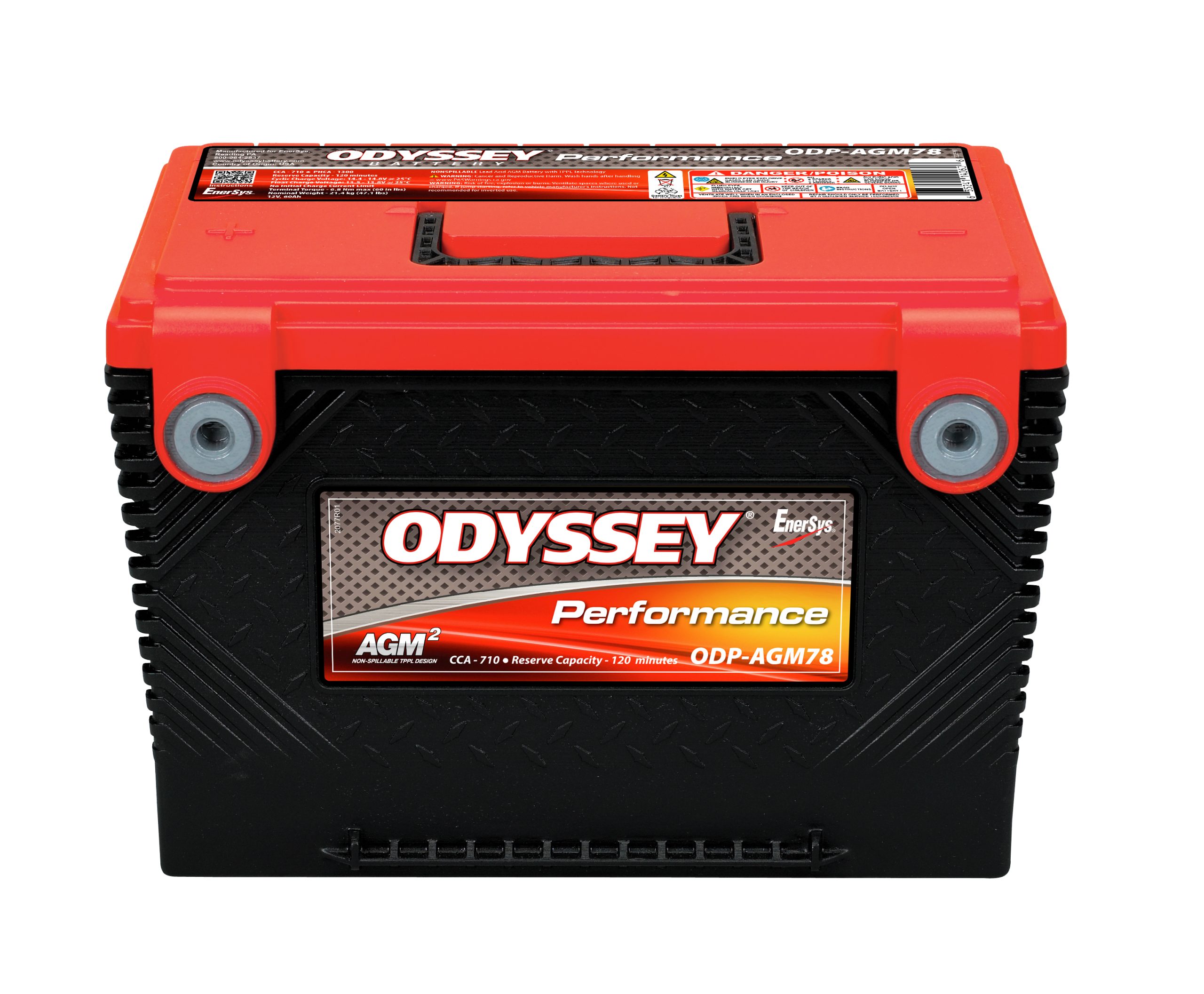

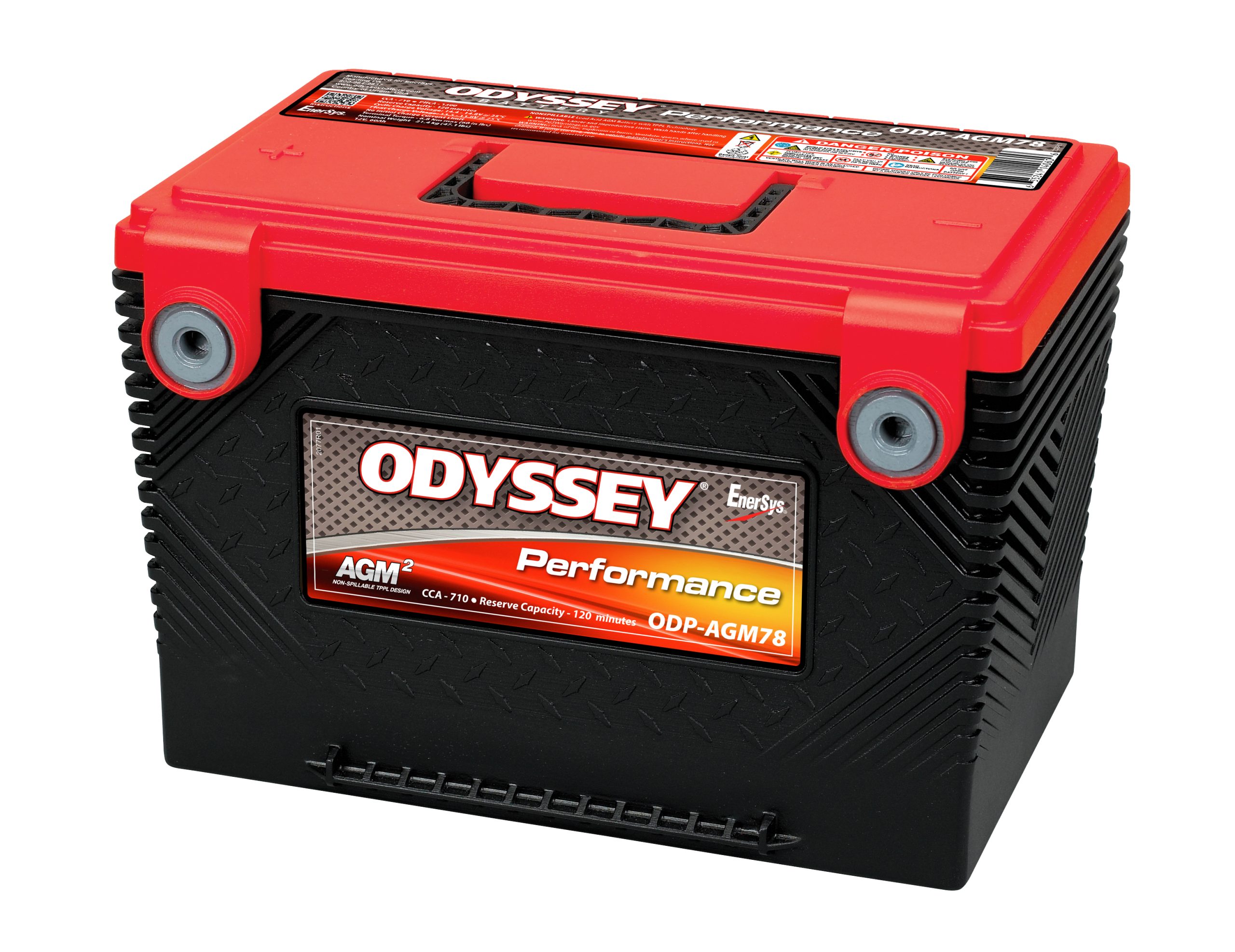

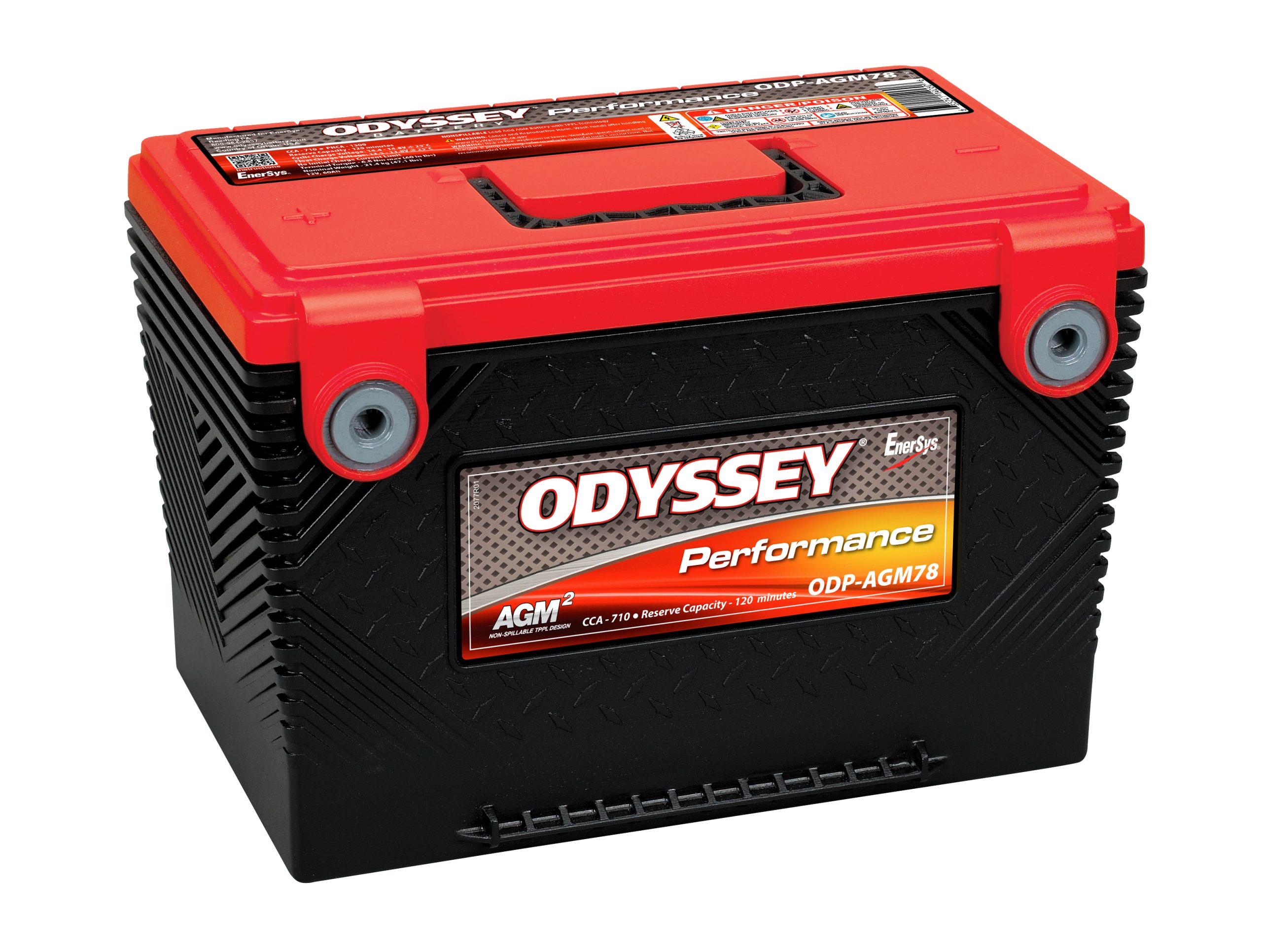

EnerSys Odyssey ODP-AGM78 Lead Acid (AGM-TPPL) Battery

As low as $332.18 each

EnerSys Odyssey Performance Series ODP-AGM78 12 Volt / 792 CCA with SAE Side Terminal Terminals

Loading...

Description

EnerSys Odyssey Performance Series ODP-AGM78 12 Volt / 792 CCA with SAE Side Terminal Terminals

Specifications
Battery Store SKU EN-ODP-AGM78SA
Dimensions 10.8″ (L) x 6.8″ (W) x 7.4″ (H)
Dimensions (mm) 275 mm (L) x 172 mm (W) x 187 mm (H)
Weight 47 lbs (21 kgs)

Additional information

Weight 47 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Pallet Layer (10 Pieces), Pallet (30 Pieces)

Product Line

Odyssey

Product Series

Performance Series

Model

ODP-AGM78

Terminal

SAE Side Terminal

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

ODP-AGM78

Manufacturers SKU
Deprecated Model #

78-790

Applications
Voltage

12

Capacity (Nominal)

792 CCA

Capacity @20 Hr

61

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

792

PHCA

1500

Reserve Capacity

124

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

10.8

Width (In)

6.8

Height - Case (In)

7.4

Height - Overall (In)

7.4

Length (mm)

275

Width (mm)

172

Height - Case (mm)

187

Height - Overall (mm)

187

Weight (lb)

47

Weight (kg)

21

BCI Group

Group 78

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
