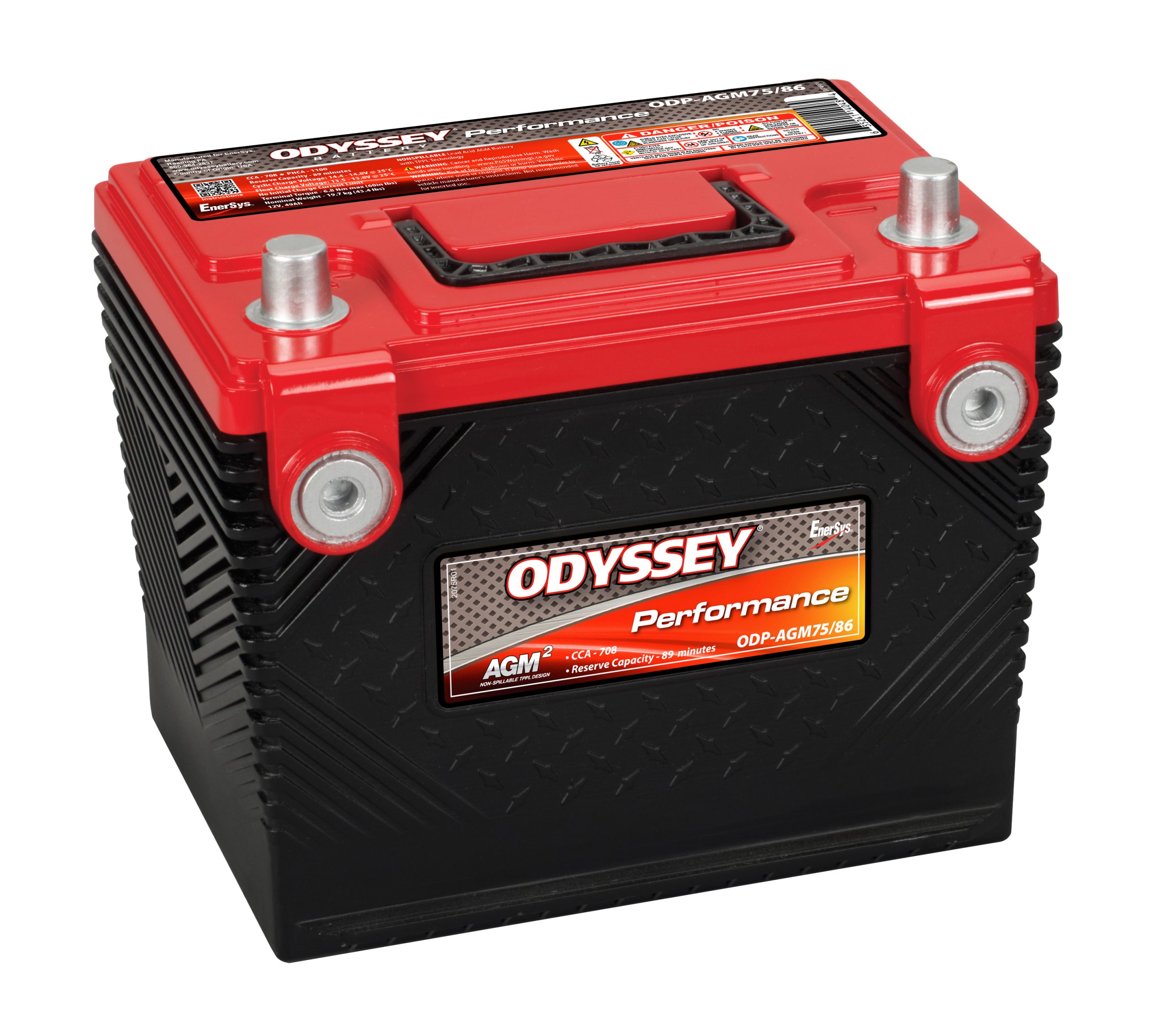

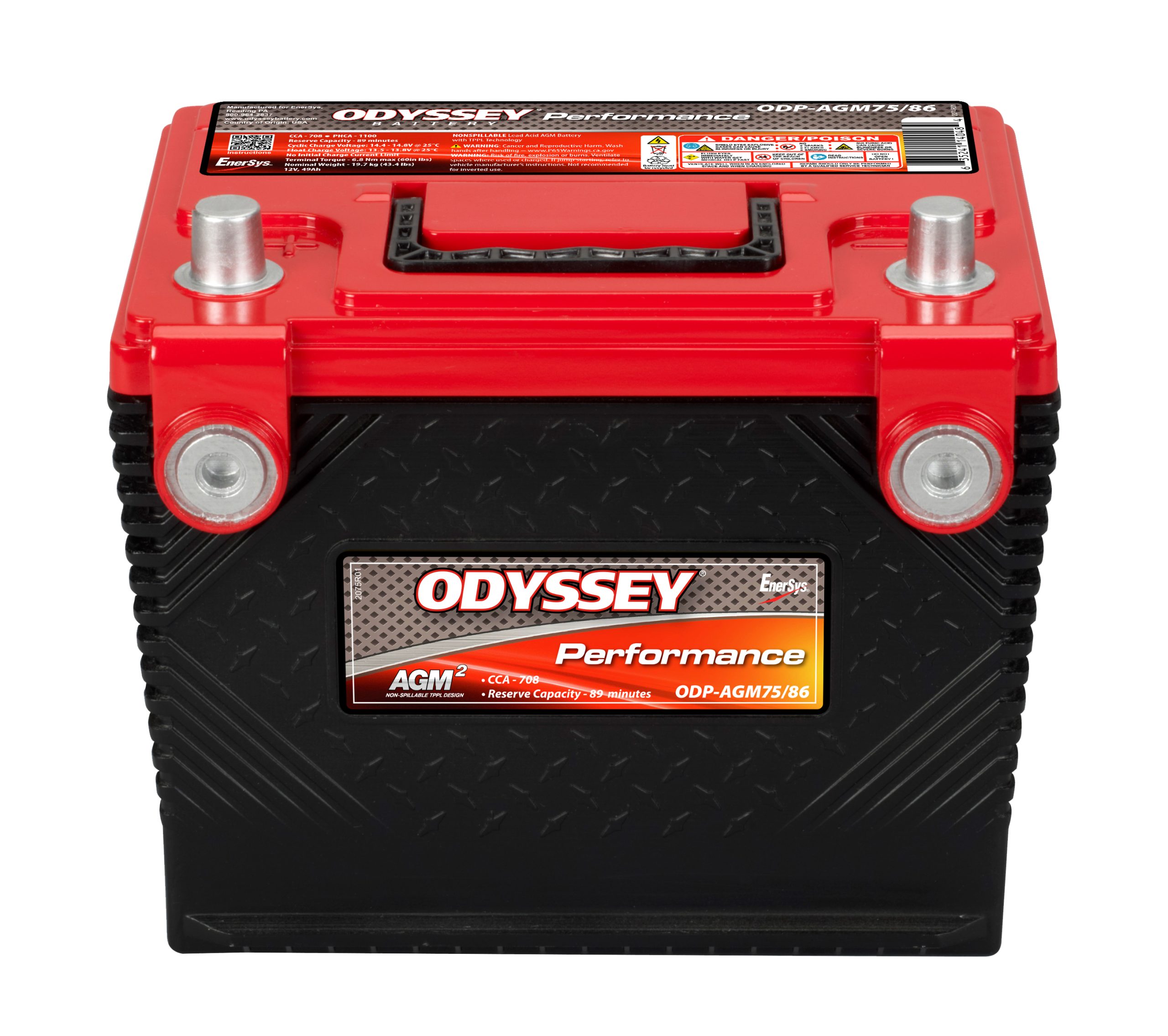

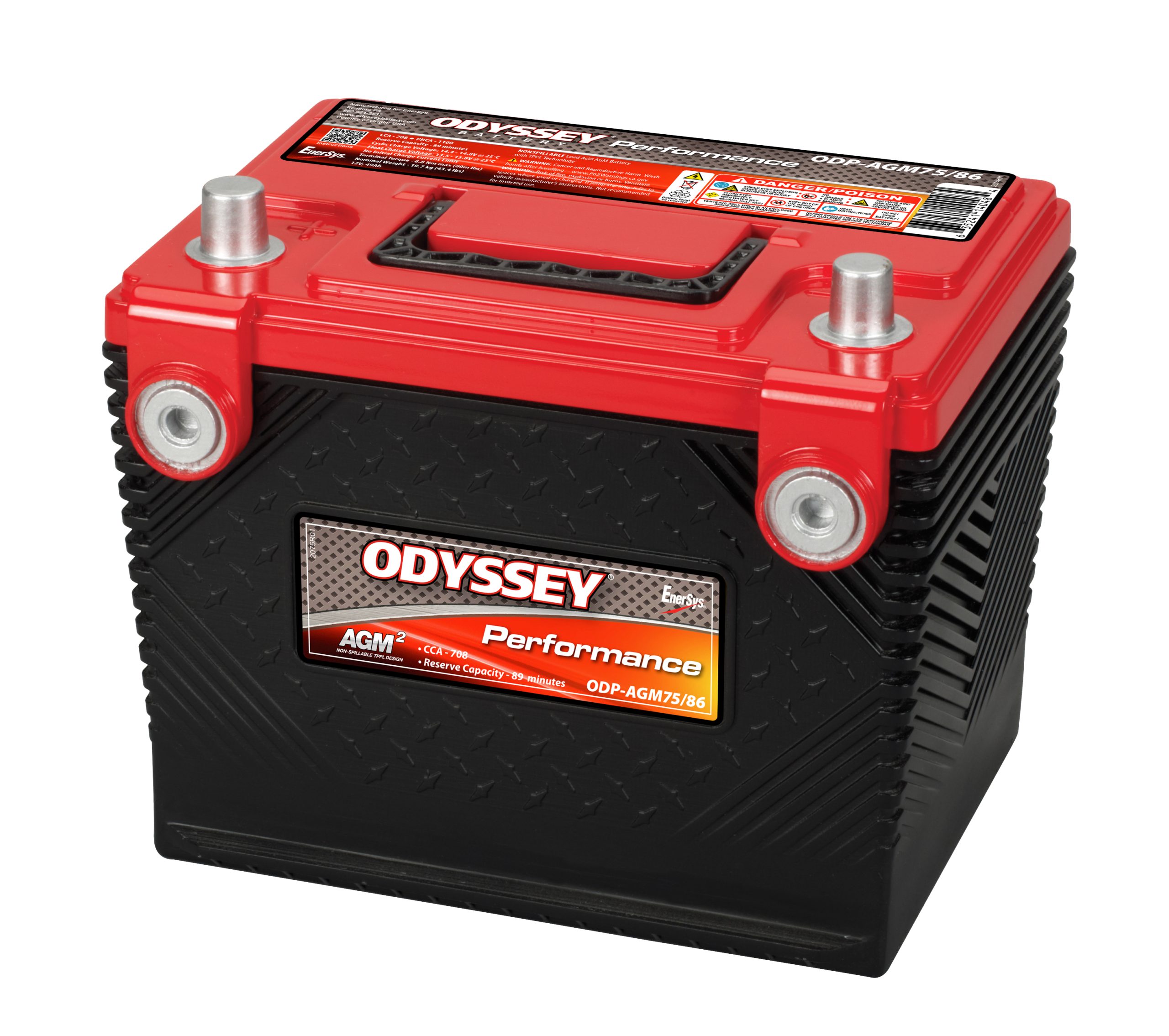

EnerSys Odyssey ODP-AGM7586 Lead Acid (AGM-TPPL) Battery

As low as $308.58 each

EnerSys Odyssey Performance Series ODP-AGM7586 12 Volt / 708 CCA with SAE & Side Recessed Terminals

Loading...

Description

EnerSys Odyssey Performance Series ODP-AGM7586 12 Volt / 708 CCA with SAE & Side Recessed Terminals

Specifications
Battery Store SKU EN-ODP-AGM7586SA
Dimensions 9.5″ (L) x 6.8″ (W) x 7.4″ (H)
Dimensions (mm) 240 mm (L) x 172 mm (W) x 187 mm (H)
Weight 43 lbs (20 kgs)

Additional information

Weight 43 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Pallet Layer (9 Pieces), Pallet (36 Pieces)

Product Line

Odyssey

Product Series

Performance Series

Model

ODP-AGM7586

Terminal

SAE & Side Recessed

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

ODP-AGM7586

Manufacturers SKU
Deprecated Model #

75/86-705

Applications
Voltage

12

Capacity (Nominal)

708 CCA

Capacity @20 Hr

49

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

708

PHCA

1100

Reserve Capacity

89

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

9.5

Width (In)

6.8

Height - Case (In)

7.4

Height - Overall (In)

7.9

Length (mm)

240

Width (mm)

172

Height - Case (mm)

187

Height - Overall (mm)

202

Weight (lb)

43

Weight (kg)

20

BCI Group

Group 75/86

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
