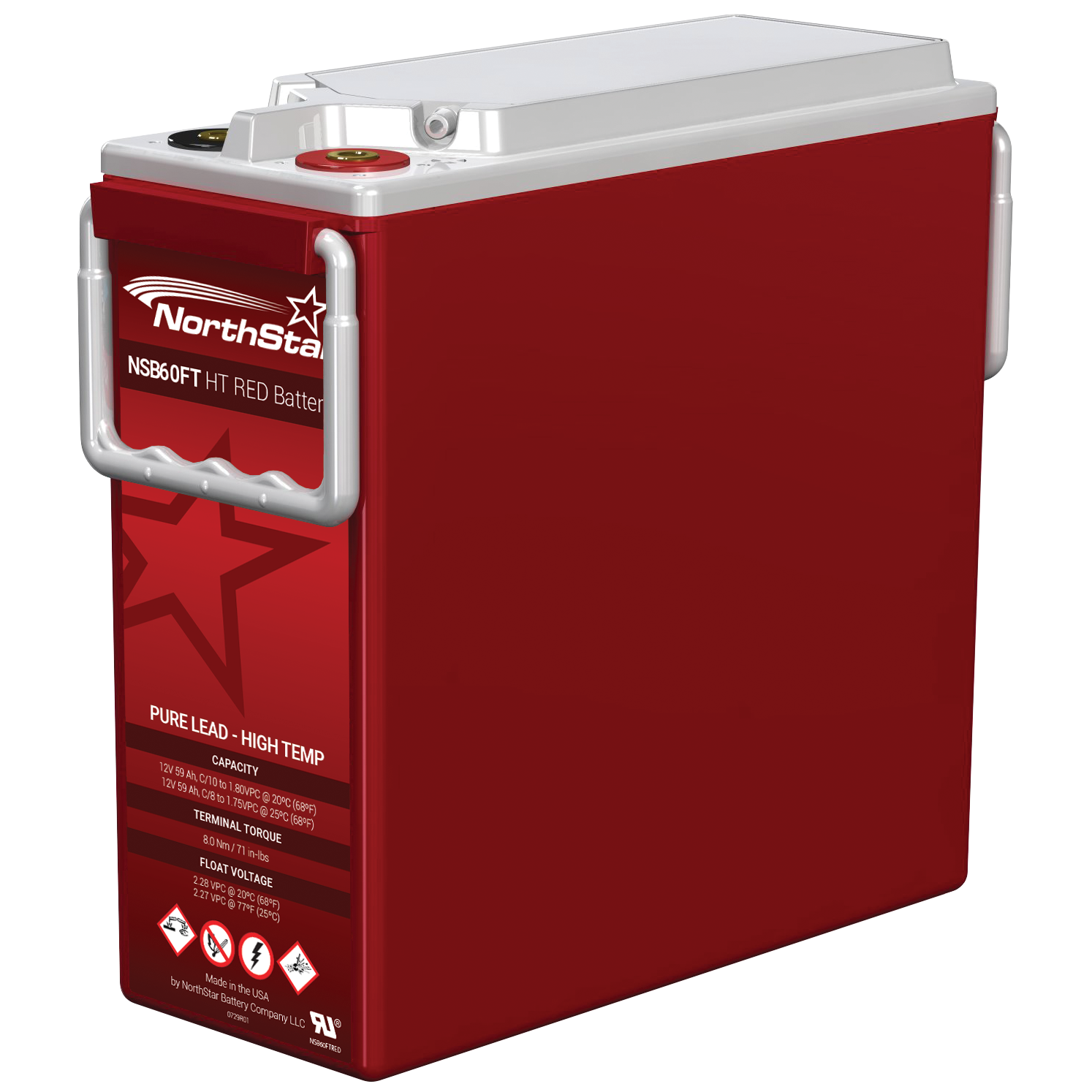

EnerSys Northstar NSB 60FT HT RED Lead Acid Battery
EnerSys Northstar HT Red Series NSB 60FT HT RED 12 Volt / 58 Ah @ 8 Hr with Recessed M8 Terminals
Loading...
Description
EnerSys Northstar HT Red Series NSB 60FT HT RED 12 Volt / 58 Ah @ 8 Hr with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NSB060FTHTRRFR |
| Dimensions | 11.3″ (L) x 4.2″ (W) x 10.4″ (H) |
| Dimensions (mm) | 287 mm (L) x 108 mm (W) x 263 mm (H) |
| Weight | 45 lbs (21 kgs) |
Additional information
| Weight | 45 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | |
| Product Line | Northstar |
| Product Series | HT Red Series |
| Model | NSB060FTHTR |
| Terminal | Recessed M8 |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | NSB 60FT HT RED |
| Manufacturers SKU | NSB060FTHTR |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 58 Ah @ 8 Hr |
| Capacity @20 Hr | |
| Capacity @10 Hr | 59 |
| Capacity @1 Hr | 44 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Design Life | |
| Service Life | 15+ Years |
| Shelf Life | 24 Months |
| Internal Resistance | 4.3 mOhm |
| Maximum Current | 2100 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -40 |
| Operating Temp High (°F) | 149 |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | -40 |
| Operating Temp High (°C) | 65 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 11.3 |
| Width (In) | 4.2 |
| Height - Case (In) | 10.4 |
| Height - Overall (In) | 10.4 |
| Length (mm) | 287 |
| Width (mm) | 108 |
| Height - Case (mm) | 263 |
| Height - Overall (mm) | 263 |
| Weight (lb) | 45 |
| Weight (kg) | 21 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet | |
| uncategorized |
