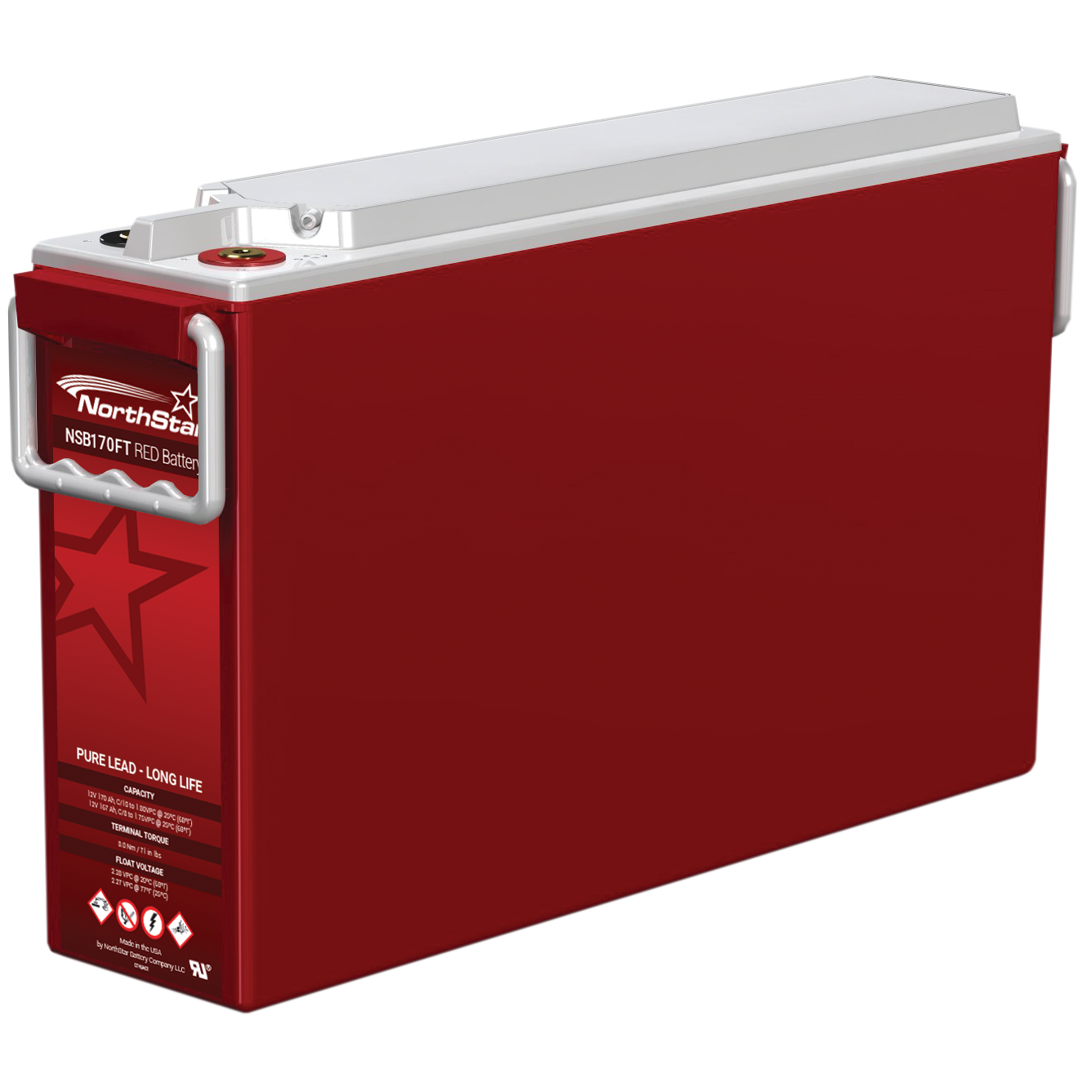

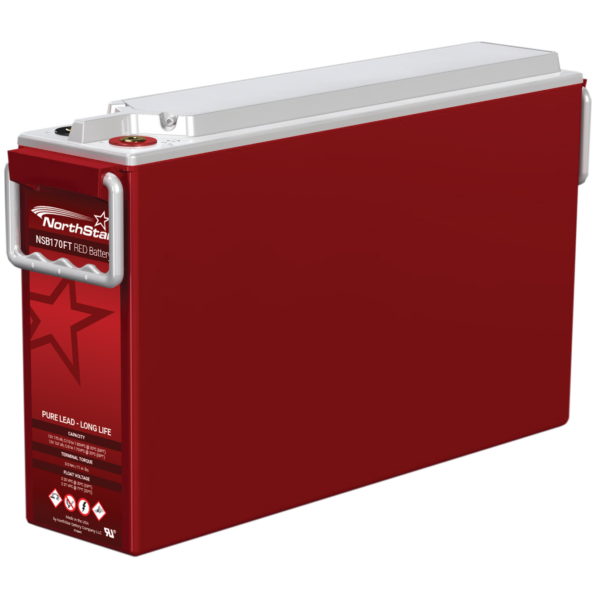

EnerSys Northstar NSB 170FT RED Lead Acid Battery

EnerSys Northstar Red Series NSB 170FT RED 12 Volt / 165 Ah @ 8 Hr with Recessed M8 Terminals

Loading...

Description

EnerSys Northstar Red Series NSB 170FT RED 12 Volt / 165 Ah @ 8 Hr with Recessed M8 Terminals

Specifications
Battery Store SKU EN-NSB170FTREDRFR
Dimensions 22″ (L) x 4.9″ (W) x 12.6″ (H)
Dimensions (mm) 560 mm (L) x 125 mm (W) x 320 mm (H)
Weight 115 lbs (52 kgs)

Additional information

Weight 115 lbs
Manufacturer

EnerSys

price-discounts

Each (1 pieces)

Product Line

Northstar

Product Series

Red Series

Model

NSB170FTRED

Terminal

Recessed M8

Terminal Layout
Case Material

Flame Retardant UL94-V0

UPC Code
Manufacturers Model #

NSB 170FT RED

Manufacturers SKU

NSB170FTRED

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

165 Ah @ 8 Hr

Capacity @20 Hr
Capacity @10 Hr

168

Capacity @1 Hr

114

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life
Service Life

15+ Years

Shelf Life

24 Months

Internal Resistance

3.0 mOhm

Maximum Current

4650 Amps

Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)

-40

Operating Temp High (°F)

149

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

65

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

22

Width (In)

4.9

Height - Case (In)

12.6

Height - Overall (In)

12.6

Length (mm)

560

Width (mm)

125

Height - Case (mm)

320

Height - Overall (mm)

320

Weight (lb)

115

Weight (kg)

52

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
