EnerSys Northstar NSB 100FT HT RED Lead Acid Battery

SKU: EN-NSB100FTHTRRFR Categories: , , , , , , ,

As low as $321.60 each

EnerSys Northstar HT Red Series NSB 100FT HT RED 12 Volt / 98 Ah @ 8 Hr with Recessed M8 Terminals

Loading...

Description

EnerSys Northstar HT Red Series NSB 100FT HT RED 12 Volt / 98 Ah @ 8 Hr with Recessed M8 Terminals

Specifications
Battery Store SKU EN-NSB100FTHTRRFR

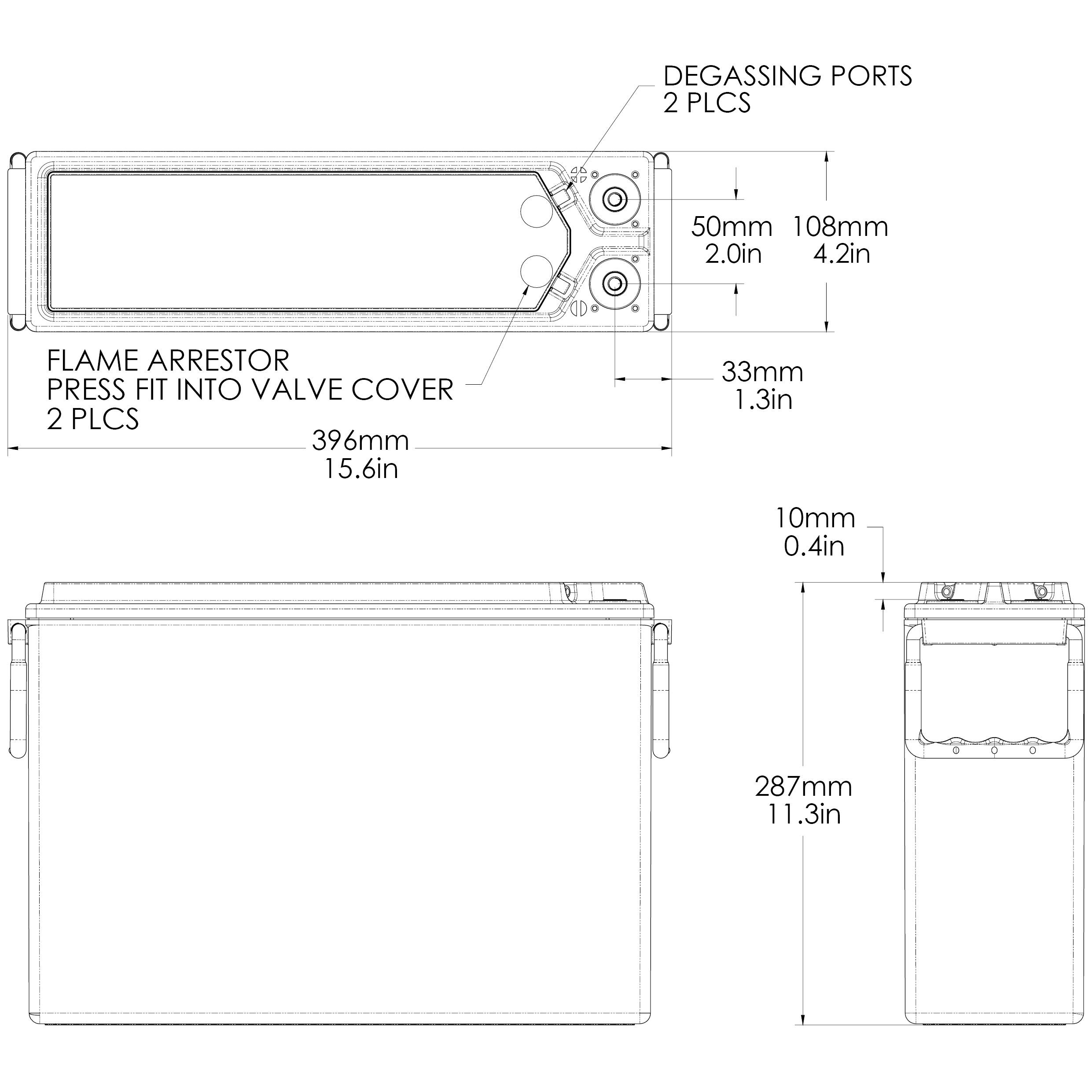

Dimensions 15.6″ (L) x 4.2″ (W) x 11.3″ (H)
Dimensions (mm) 396 mm (L) x 108 mm (W) x 287 mm (H)
Weight 72 lbs (33 kgs)

Additional information

Weight 72 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Pallet Layer (10 Pieces), Pallet (20 Pieces)

Product Line

Northstar

Product Series

HT Red Series

Model

NSB100FTHTR

Terminal

Recessed M8

Terminal Layout
Case Material

Flame Retardant UL94-V0

UPC Code
Manufacturers Model #

NSB 100FT HT RED

Manufacturers SKU

NSB100FTHTR

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

98 Ah @ 8 Hr

Capacity @20 Hr
Capacity @10 Hr

99

Capacity @1 Hr

77

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life
Service Life

15+ Years

Shelf Life

24 Months

Internal Resistance

3.9 mOhm

Maximum Current

3500 Amps

Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)

-40

Operating Temp High (°F)

149

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

65

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

15.6

Width (In)

4.2

Height - Case (In)

11.3

Height - Overall (In)

11.3

Length (mm)

396

Width (mm)

108

Height - Case (mm)

287

Height - Overall (mm)

287

Weight (lb)

72

Weight (kg)

33

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
