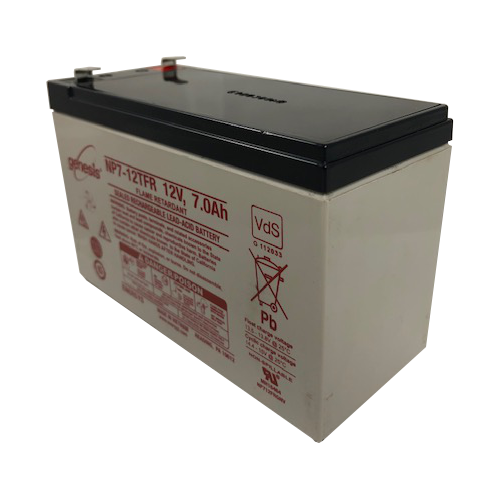

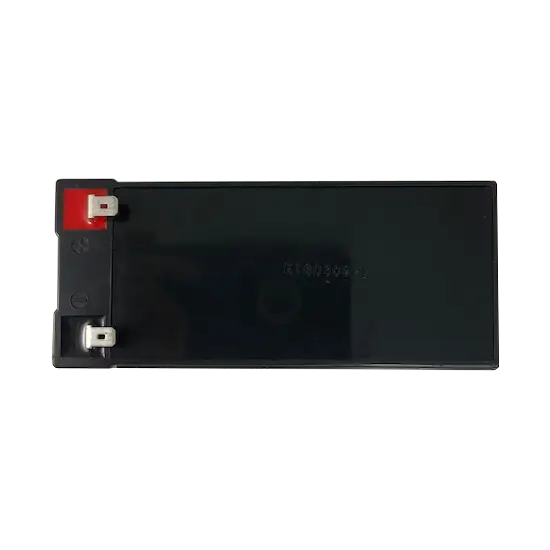

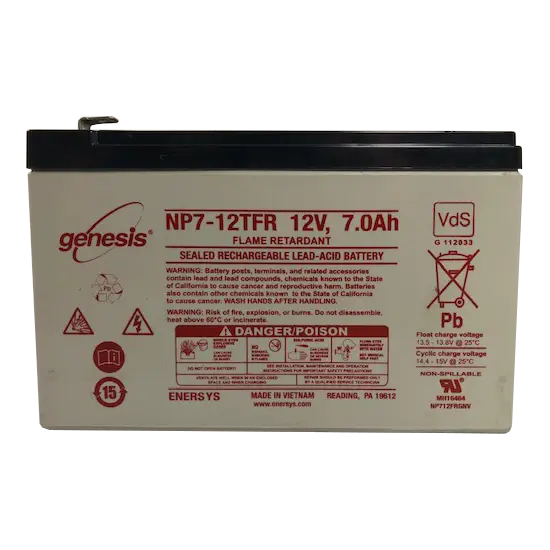

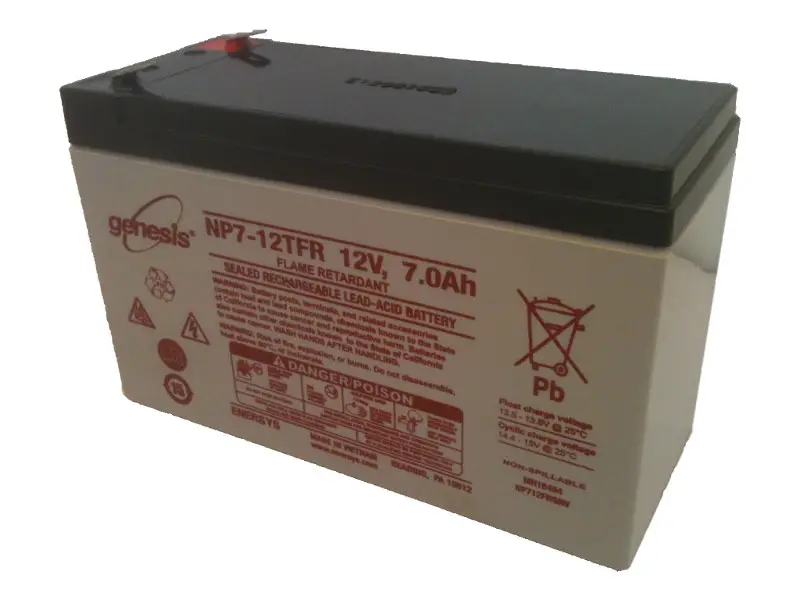

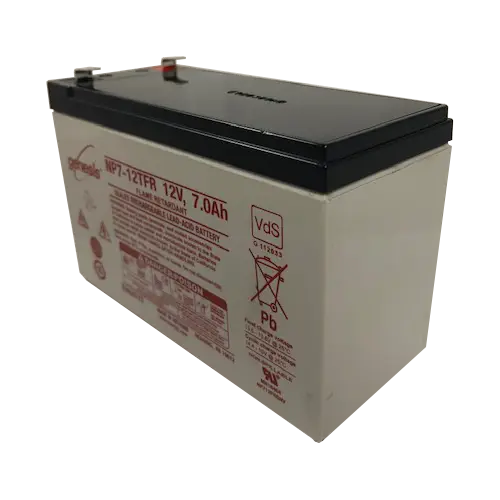

EnerSys Genesis NP7-12TFR Lead Acid (AGM) Battery

As low as $17.62 each

EnerSys Genesis NP Series NP7-12TFR 12 Volt / 7 Ah @ 20 Hr with F2 (0.250″) Terminals

Loading...

Description

EnerSys Genesis NP Series NP7-12TFR 12 Volt / 7 Ah @ 20 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU EN-NP7-12F2FR
Dimensions 5.94″ (L) x 2.56″ (W) x 3.7″ (H)
Dimensions (mm) 151 mm (L) x 65 mm (W) x 94 mm (H)
Weight 5.28 lbs (2.4 kgs)

Additional information

Weight 5.28 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Box/Case (8 Pieces), Pallet Layer (96 Pieces), Pallet (384 Pieces)

Product Line

Genesis

Product Series

NP Series

Model

NP7-12

Terminal

F2 (0.250")

Terminal Layout
Case Material

Flame Retardant ABS Plastic

UPC Code
Manufacturers Model #

NP7-12TFR

Manufacturers SKU

NP7-12TFR

Deprecated Model #
Applications

General Purpose

Voltage

12

Capacity (Nominal)

7 Ah @ 20 Hr

Capacity @20 Hr

7

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM

Design Life

3 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance
Maximum Current

6C

Cycles @ 80% Discharge

400

Standby Charge Voltage

13.5 to 13.8 Volts

Cycle Charge Voltage

14.4 to 15.0 Volts

Maximum Charge Current

C/10

Operating Temp Low (°F)

-5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

5.94

Width (In)

2.56

Height - Case (In)

3.7

Height - Overall (In)

3.94

Length (mm)

151

Width (mm)

65

Height - Case (mm)

94

Height - Overall (mm)

100

Weight (lb)

5.28

Weight (kg)

2.4

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

8

Qty Per Pallet

360
