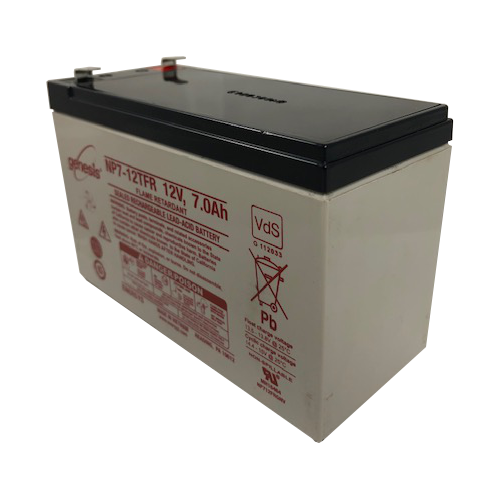

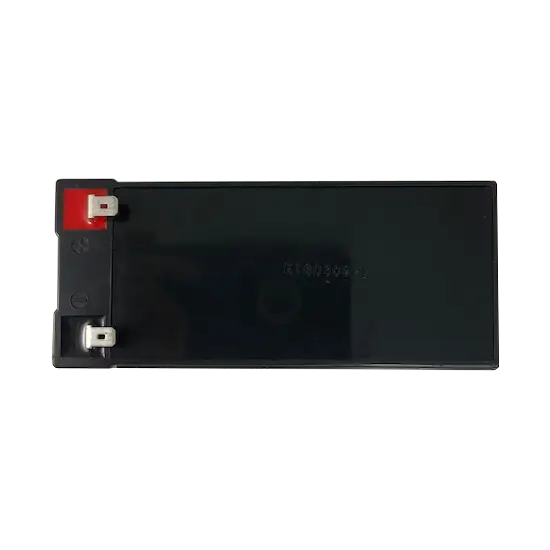

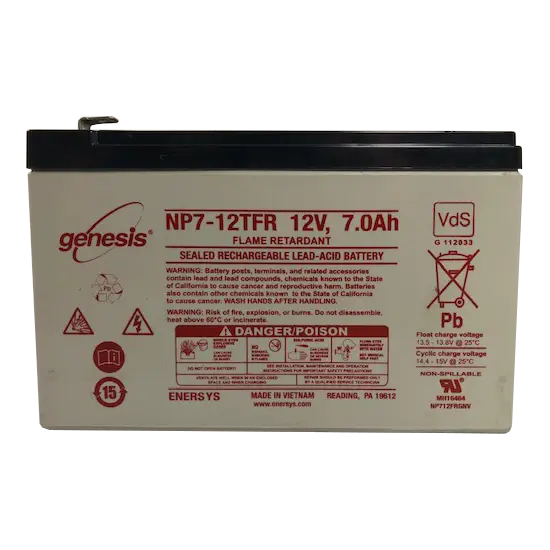

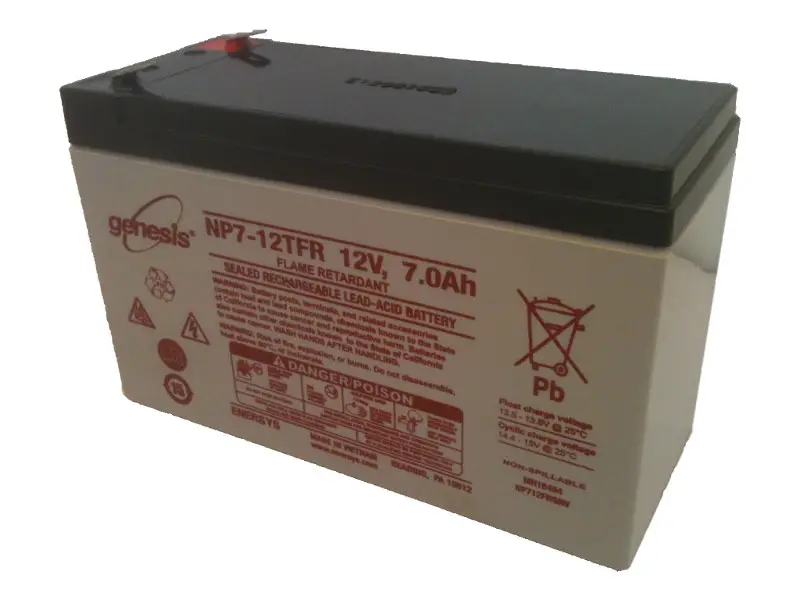

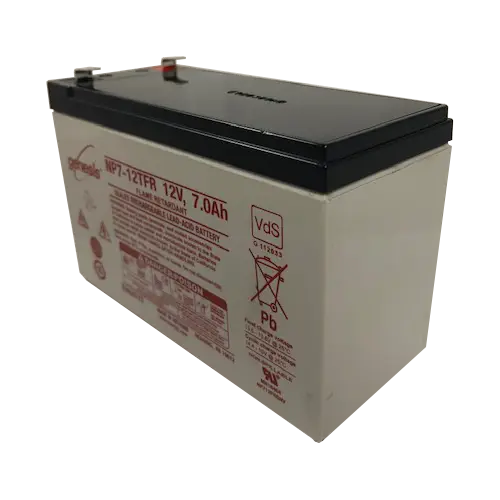

EnerSys Genesis NP7-12TFR Lead Acid (AGM) Battery
As low as $21.17 each
EnerSys Genesis NP Series NP7-12TFR 12 Volt / 7 Ah @ 20 Hr with F2 (0.250″) Terminals
Loading...
Description
EnerSys Genesis NP Series NP7-12TFR 12 Volt / 7 Ah @ 20 Hr with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NP7-12F2FR |
| Dimensions | ” (L) x ” (W) x ” (H) |
| Dimensions (mm) | mm (L) x mm (W) x mm (H) |
| Weight | lbs ( kgs) |
Additional information
| Weight | 5.28 lbs |
|---|---|
| price-discounts | Each (1 pieces), Box/Case (8 pieces), Pallet Layer (96 pieces), Pallet (384 pieces) |
| Manufacturer | EnerSys |
| Product Line | Genesis |
| Product Series | NP Series |
| Model | NP7-12 |
| Terminal | F2 (0.250") |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | NP7-12TFR |
| Manufacturers SKU | NP7-12TFR |
| Applications | General Purpose |
| Voltage | 12 |
| Capacity (Nominal) | 7 Ah @ 20 Hr |
| Capacity @20 Hr | 7 |
| Chemistry | Lead Acid |
| Technology | AGM |
| Design Life | 3 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Maximum Current | 6C |
| Cycles @ 80% Discharge | 400 |
| Standby Charge Voltage | 13.5 to 13.8 Volts |
| Cycle Charge Voltage | 14.4 to 15.0 Volts |
| Maximum Charge Current | C/10 |
| Operating Temp Low (°F) | -5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 5.94 |
| Width (In) | 2.56 |
| Height - Case (In) | 3.7 |
| Height - Overall (In) | 3.94 |
| Length (mm) | 151 |
| Width (mm) | 65 |
| Height - Case (mm) | 94 |
| Height - Overall (mm) | 100 |
| Weight (lb) | 5.28 |
| Weight (kg) | 2.4 |
| Manufacturers Warranty | 12 Months |
| Qty Per Box | 8 |
| Qty Per Pallet | 360 |
