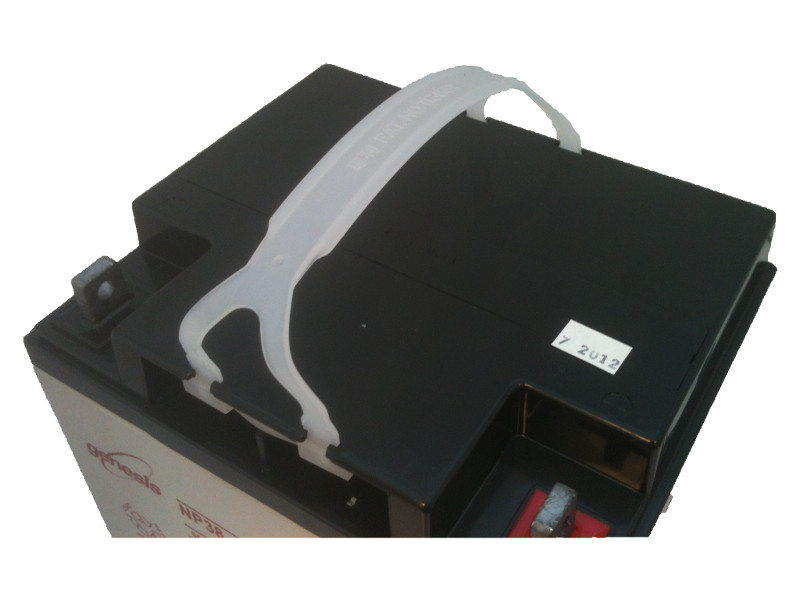

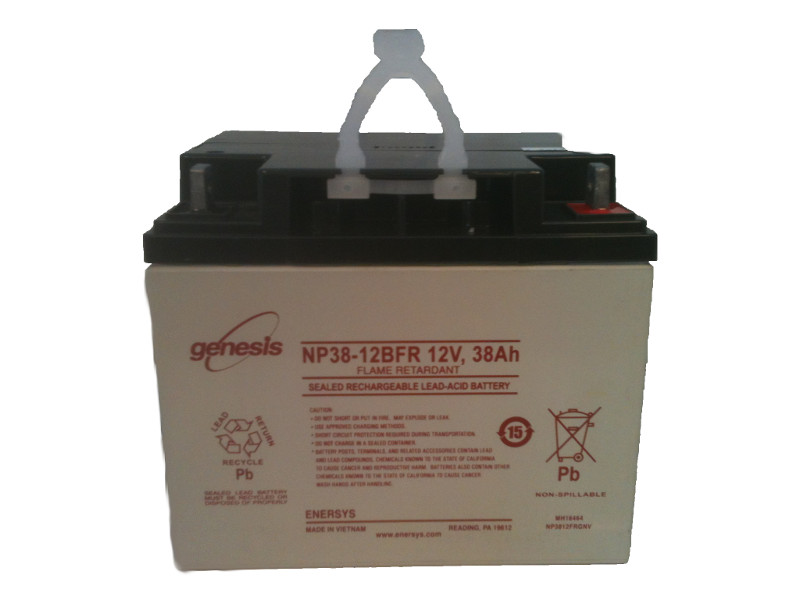

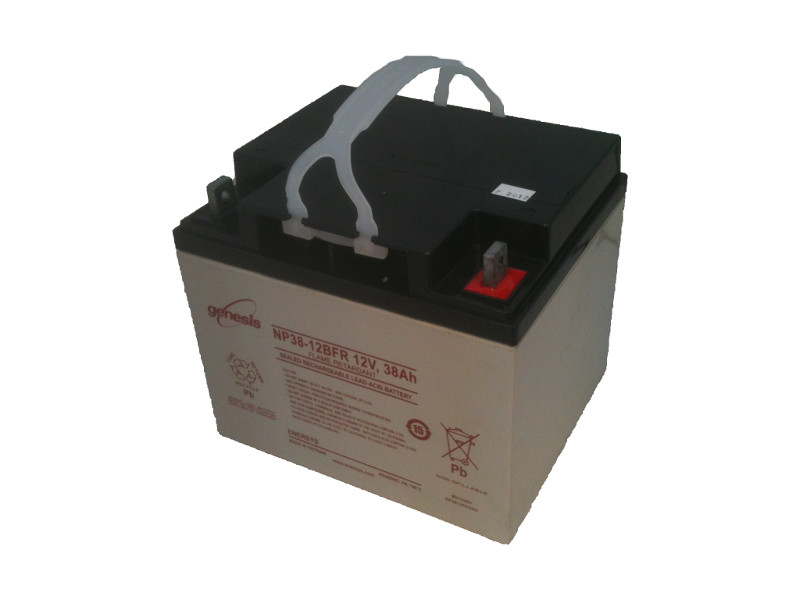

EnerSys Genesis NP38-12BFR Lead Acid (AGM) Battery

As low as $121.28 each

EnerSys Genesis NP Series NP38-12BFR 12 Volt / 38 Ah @ 20 Hr with Nut & Bolt (M6) Terminals

Loading...

Description

EnerSys Genesis NP Series NP38-12BFR 12 Volt / 38 Ah @ 20 Hr with Nut & Bolt (M6) Terminals

Specifications
Battery Store SKU EN-NP38-12NBFR
Dimensions 7.76″ (L) x 6.5″ (W) x 6.77″ (H)
Dimensions (mm) 197 mm (L) x 165 mm (W) x 172 mm (H)
Weight 29.744 lbs (13.52 kgs)

Product Notes

Discontinued by EnerSys, equivalents available

Additional information

Weight 29.744 lbs
Manufacturer

EnerSys

price-discounts

Each (1 pieces), Box/Case (9 pieces), Pallet Layer (18 pieces), Pallet (72 pieces)

Product Line

Genesis

Product Series

NP Series

Model

NP38-12

Terminal

Nut & Bolt (M6)

Terminal Layout
Case Material

Flame Retardant ABS Plastic

UPC Code
Manufacturers Model #

NP38-12BFR

Manufacturers SKU

NP38-12BFR

Deprecated Model #
Applications

General Purpose

Voltage

12

Capacity (Nominal)

38 Ah @ 20 Hr

Capacity @20 Hr

38

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM

Design Life

3 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance
Maximum Current

6C

Cycles @ 80% Discharge

400

Standby Charge Voltage

13.5 to 13.8 Volts

Cycle Charge Voltage

14.4 to 15.0 Volts

Maximum Charge Current

C/10

Operating Temp Low (°F)

-5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

7.76

Width (In)

6.5

Height - Case (In)

6.77

Height - Overall (In)

7.48

Length (mm)

197

Width (mm)

165

Height - Case (mm)

172

Height - Overall (mm)

190

Weight (lb)

29.744

Weight (kg)

13.52

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
