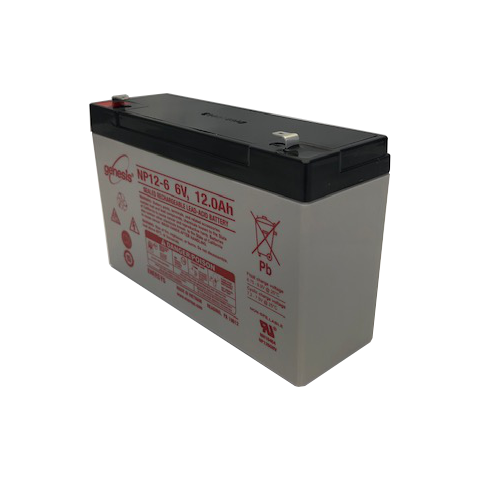

EnerSys Genesis NP12-6 Lead Acid (AGM) Battery

As low as $15.86 each

EnerSys Genesis NP Series NP12-6 6 Volt / 12 Ah @ 20 Hr with F1 (0.187″) Terminals

Loading...

Description

EnerSys Genesis NP Series NP12-6 6 Volt / 12 Ah @ 20 Hr with F1 (0.187″) Terminals

Specifications
Battery Store SKU EN-NP12-6F1
Dimensions 5.94″ (L) x 1.97″ (W) x 3.98″ (H)
Dimensions (mm) 151 mm (L) x 50 mm (W) x 101 mm (H)
Weight 4.224 lbs (1.92 kgs)

Additional information

Weight 4.224 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Box/Case (10 Pieces), Pallet Layer (90 Pieces), Pallet (540 Pieces)

Product Line

Genesis

Product Series

NP Series

Model

NP12-6

Terminal

F1 (0.187")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

NP12-6

Manufacturers SKU

NP12-6

Deprecated Model #
Applications

General Purpose

Voltage

6

Capacity (Nominal)

12 Ah @ 20 Hr

Capacity @20 Hr

12

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM

Design Life

3 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance
Maximum Current

6C

Cycles @ 80% Discharge

400

Standby Charge Voltage

13.5 to 13.8 Volts

Cycle Charge Voltage

14.4 to 15.0 Volts

Maximum Charge Current

C/10

Operating Temp Low (°F)

-5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

5.94

Width (In)

1.97

Height - Case (In)

3.98

Height - Overall (In)

4.21

Length (mm)

151

Width (mm)

50

Height - Case (mm)

101

Height - Overall (mm)

107

Weight (lb)

4.224

Weight (kg)

1.92

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
