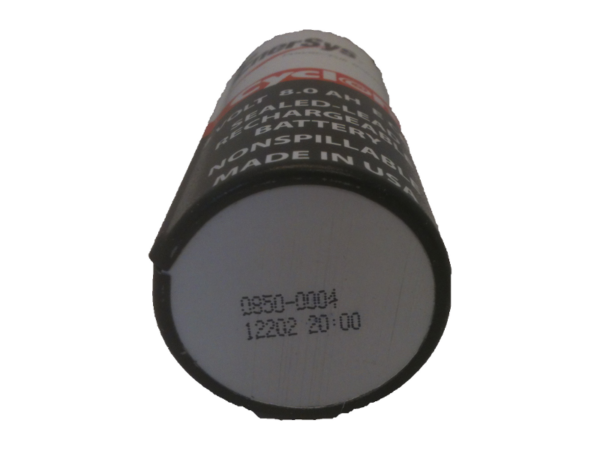

EnerSys Cyclon 0850-0004 Lead Acid (AGM-TPPL) Battery

As low as $19.80 each

EnerSys Cyclon Series 0850-0004 2 Volt / 8 Ah @ 10 Hr with F2 (0.250″) Terminals

Loading...

Description

EnerSys Cyclon Series 0850-0004 2 Volt / 8 Ah @ 10 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU EN-0850-0004F2MJ
Dimensions 1.73″ (L) x 1.73″ (W) x 3.94″ (H)
Dimensions (mm) 44 mm (L) x 44 mm (W) x 100 mm (H)
Weight 1.08 lbs (0.49 kgs)

Additional information

Weight 1.08 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces), Box/Case (20 Pieces), Pallet Layer (600 Pieces), Pallet (2,400 Pieces)

Product Line
Product Series

Cyclon Series

Model

0850-0004

Terminal

F2 (0.250")

Terminal Layout
Case Material

Metal

UPC Code
Manufacturers Model #

0850-0004

Manufacturers SKU

0850-0004

Deprecated Model #
Applications

High Rate;Deep Cycle

Voltage

2

Capacity (Nominal)

8 Ah @ 10 Hr

Capacity @20 Hr

8.4

Capacity @10 Hr

8.1

Capacity @1 Hr

6.2

Capacity @15 Min

4.8

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

10 years

Service Life

6 years

Shelf Life

24 Months

Internal Resistance

3.0 mOhm

Maximum Current

665 Amps

Cycles @ 80% Discharge

300

Standby Charge Voltage

2.27 to 2.35 VPC

Cycle Charge Voltage

2.45 to 2.50 VPC

Maximum Charge Current

1C

Operating Temp Low (°F)

-85

Operating Temp High (°F)

176

Storage Temp Low (°F)

-85

Storage Temp High (°F)

176

Operating Temp Low (°C)

-65

Operating Temp High (°C)

80

Storage Temp Low (°C)

-65

Storage Temp High (°C)

80

Length (In)

1.73

Width (In)

1.73

Height - Case (In)

3.94

Height - Overall (In)

4.29

Length (mm)

44

Width (mm)

44

Height - Case (mm)

100

Height - Overall (mm)

109

Weight (lb)

1.08

Weight (kg)

0.49

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications

UL 1989

Qty Per Box

20

Qty Per Pallet

1024
