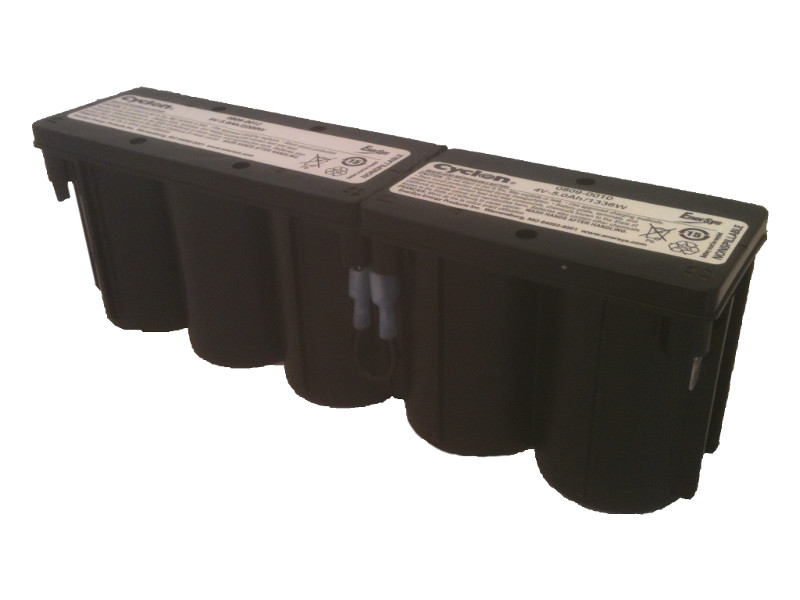

EnerSys Cyclon 0809-0048 Lead Acid (AGM-TPPL) Battery

EnerSys Cyclon Series 0809-0048 10 Volt / 5 Ah @ 10 Hr with F2 (0.250″) Terminals

Loading...

Description

EnerSys Cyclon Series 0809-0048 10 Volt / 5 Ah @ 10 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU EN-0809-0048F2
Dimensions 9.29″ (L) x 2.13″ (W) x 3.03″ (H)
Dimensions (mm) 236 mm (L) x 54 mm (W) x 77 mm (H)
Weight 3.77 lbs (1.7 kgs)

Additional information

Weight 3.77 lbs
Manufacturer

EnerSys

price-discounts

Each (1 Pieces)

Product Line
Product Series

Cyclon Series

Model

0809-0048

Terminal

F2 (0.250")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

0809-0048

Manufacturers SKU

0809-0048

Deprecated Model #
Applications

High Rate;Deep Cycle

Voltage

10

Capacity (Nominal)

5 Ah @ 10 Hr

Capacity @20 Hr

5.2

Capacity @10 Hr

5

Capacity @1 Hr

3.9

Capacity @15 Min

3.3

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

10 years

Service Life

6 years

Shelf Life

24 Months

Internal Resistance

17 mOhm

Maximum Current

570 Amps

Cycles @ 80% Discharge

300

Standby Charge Voltage

2.27 to 2.35 VPC

Cycle Charge Voltage

2.45 to 2.50 VPC

Maximum Charge Current

1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

104

Storage Temp Low (°F)

-40

Storage Temp High (°F)

104

Operating Temp Low (°C)

-40

Operating Temp High (°C)

40

Storage Temp Low (°C)

-40

Storage Temp High (°C)

40

Length (In)

9.29

Width (In)

2.13

Height - Case (In)

3.03

Height - Overall (In)

3.03

Length (mm)

236

Width (mm)

54

Height - Case (mm)

77

Height - Overall (mm)

77

Weight (lb)

3.77

Weight (kg)

1.7

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications

UL 1989

Qty Per Box

32

Qty Per Pallet

1024
